Open Box Unit
Contact us for pictures!

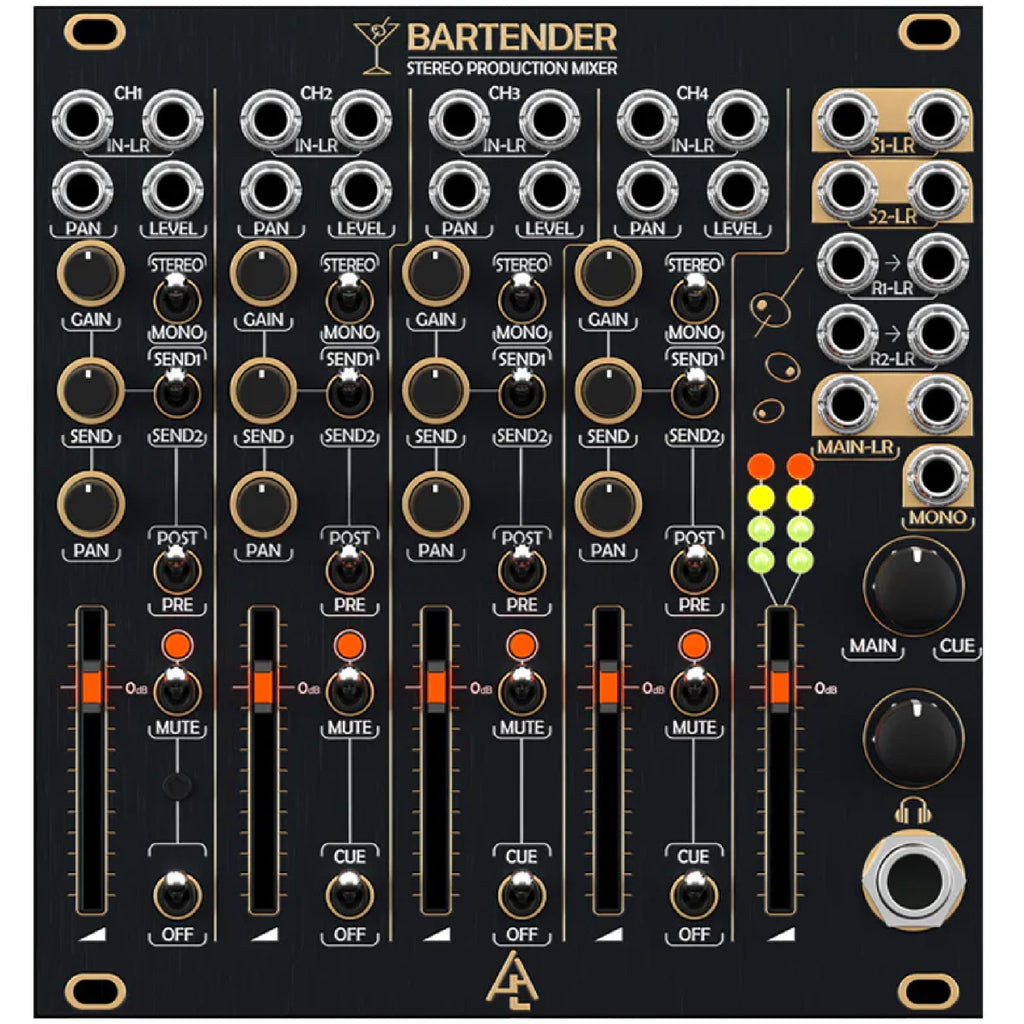

After Later Audio Bartender 4Ch Stereo Mixer.
Bartender is a flexible, expandable Eurorack mixer designed as the core of a modular mixing system. It offers four stereo channels, dual stereo aux sends and returns, cue monitoring, and deep CV control—scaling easily from compact setups to full multi-channel modular mixers. Version 2 adds improved audio performance and expanded connectivity.
Key Features
-
4 Stereo Channels: Each channel can operate in stereo or summed mono.
-
Dual Stereo Aux Sends & Returns: Two independent stereo send buses with pre/post level routing.
-
CV Control per Channel: Voltage control over level and panning.
-
Cue Monitoring System: Route channels to cue bus with headphone monitoring and blend control.
-
Click-Reduced Mutes: Latching and momentary mute with softened transitions.
-
Expandable Architecture: Cascade multiple Bartenders or add Barback expanders for larger systems.
-
Group Control Functionality: When cascaded, the main level of the expander unit acts as a group fader.
Version 2 Improvements
-
Reduced audio bleed and channel crosstalk
-
Expansion headers for sends, EQ, main insert, and direct outs
-
Compatible with Version 1 units (expanders require v2 hardware)
Mixer Section
-
Stereo or mono operation per channel
-
CV inputs for level and pan
-
Assignable routing to two stereo send buses
-
Cue bus routing per channel
-
Pan control usable as crossfader in mono configurations
Main & Cue Outputs
-
Main Stereo Output with level fader and stereo VU meter
-
Main Mono Output (summed L/R)
-
Two Stereo Send Outputs
-
Two Stereo Returns (can function as main inserts)
-
Headphone Output with level control and cue/main blend fader
System Expansion
-
Cascade Bartenders for 8, 12, or 16-channel mixers
-
Add Barback modules for additional channels
-
Compatible with Send-VCA, DVCA, Cast Iron, Mingles, USB-2CH via rear pin headers
-
Audio and control connectivity via Dupont (female-to-female) cables
Technical Specifications
-
Width: 24 hp
-
Power Consumption:
-
+12V: 260 mA
-
−12V: 225 mA
Bartender is built for modular users who want a serious mixing solution inside their rack. With stereo signal paths, CV control, cue monitoring, and a scalable design, it functions equally well as a compact performance mixer or the foundation of a large modular mixing system.
This product has been unboxed and opened. It is in near-mint condition and show virtually no signs of use. It comes with all the original accessories and packing. This is a final sale but includes the manufacturer’s full warranty.
