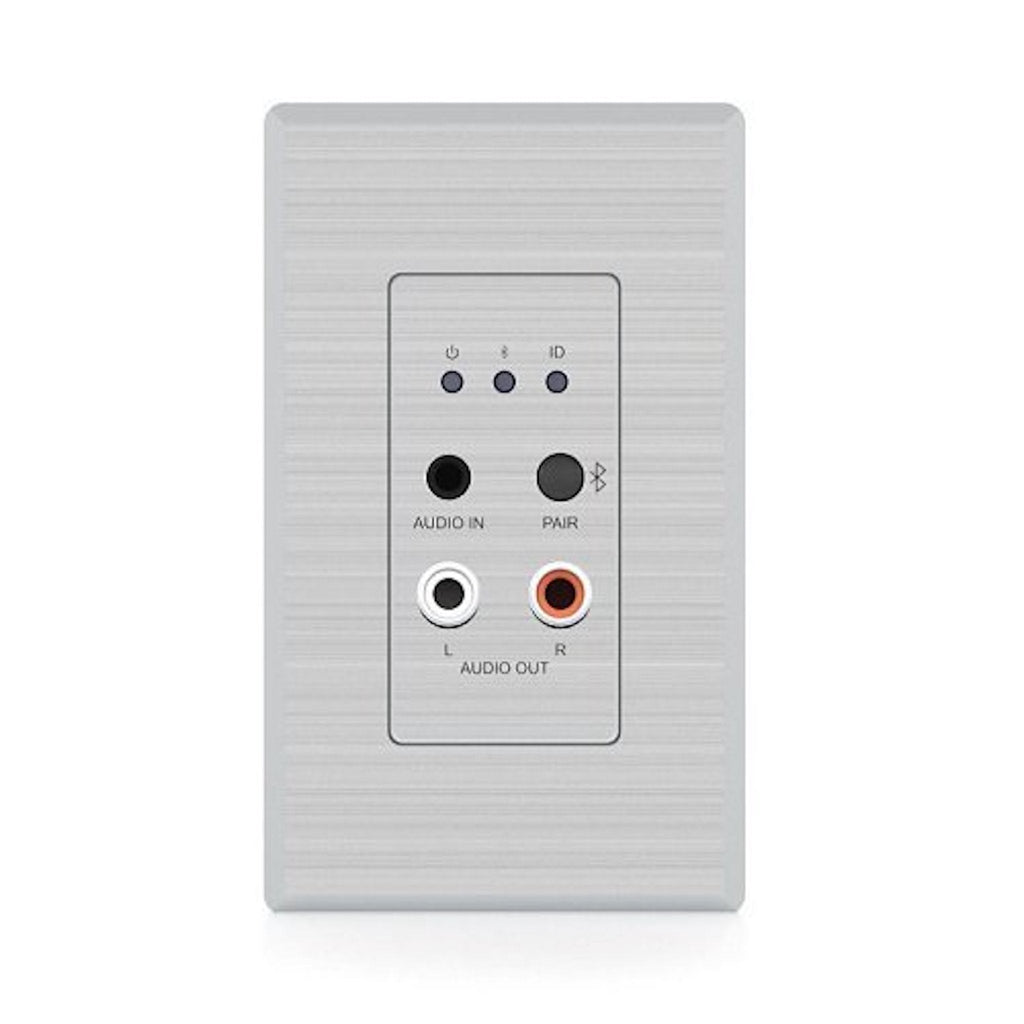

The DA11ABL-WP-US is a multi-input/output wall plate to convert Bluetooth and analog audio within a digital Dante networked audio system. The DA11ABL-WP converts 2-Input channels of Bluetooth, or unbalanced audio to Dante digital audio, and 2-Channels of Dante audio to 2-Output channels of unbalanced audio. Software configuration for the DA11ABL-WP allows for the Bluetooth name to be amended as required where being deployed in multi-user spaces. The DA11ABL-WP is a plug and play device that is powered using PoE (Power over Ethernet), or via 12V power supply, offers support for AES67 RTP audio transport, and magnetic faceplate design allows for both UK and EU backbox compatibility.
Main Features
-
Dante network wall plate interface for Bluetooth and analog L/R audio inputs, and L/R audio outputs
-
Converts 2" Bluetooth, or un-balanced audio sources to Dante audio
-
Converts Dante audio 2-Channels to un-balanced audio outputs
-
Configurable Bluetooth naming allows for simple discovery of the unit
-
Adjustable input sensitivity from +24dBu to -28dBV via control software
-
Configurable Dante device latency (supports 1, 2 or 5ms configurable using Dante®Controller)
-
Supports AES67 RTP audio transport
-
Features Class 0 IEEE 802.3af PoE for powering of product from any PoE switch
-
Supports power via 12V DC adapter (not included) for when network switch does not support PoE
-
Magnetic faceplate surround and US Decora style backbox compatibility
