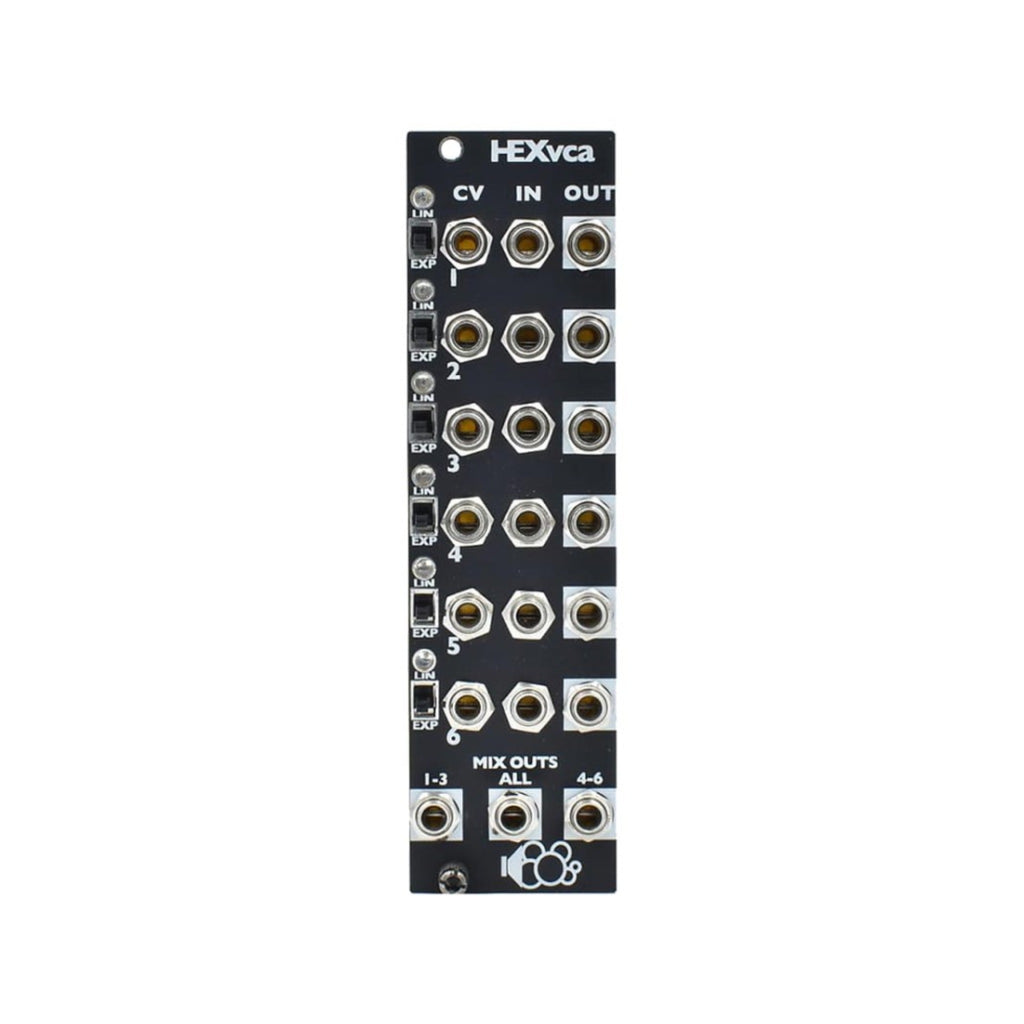

The HEXvca is a compact Eurorack module featuring six independent voltage-controlled amplifiers (VCAs) with three dedicated mix outputs. Designed for flexible routing and dense modular systems, it allows both audio and CV processing with high headroom and low noise performance thanks to its SSM2164 VCA architecture.
Each VCA can be switched between linear and exponential response, making the module suitable for everything from precise modulation control to musical amplitude shaping. Internal normalization via rear jumpers allows shared control signals across multiple channels, enabling complex grouped dynamics without additional patching.
The HEXvca also includes integrated mixing functionality, allowing channels to be grouped into three mix buses (1–3, 4–6, and 1–6), effectively functioning as a voltage-controlled mixer. Expansion headers allow direct connection to the HEXa(s)r module for streamlined envelope-to-VCA routing without patch cables.
Features
• Six independent VCA channels in a single Eurorack module
• Switchable linear and exponential response per channel
• Three mix outputs: channels 1–3, 4–6, and 1–6 summed
• DC-coupled design for both audio and CV processing
• SSM2164 VCA core for low noise, low distortion, and high headroom
• Normalized CV routing via rear jumpers for multi-channel control
• Expansion header for direct connection to HEXa(s)r module (no patch cables required)
• 6-pin audio input expansion header for future system integration
• Can function as both VCA array and voltage-controlled mixer
• Optimized for dense Eurorack systems requiring flexible routing
Specifications
• Product: HEXvca Voltage Controlled Amplifier Module
• Channels: 6 VCAs
• Response: Linear / Exponential switchable
• Mix Outputs: 3 (1–3, 4–6, 1–6)
• VCA Type: SSM2164-based
• Signal Type: DC-coupled (audio + CV)
• Width: 7HP
• Depth: 30 mm
• Power Consumption: +50 mA / -45 mA
Included
• HEXvca Eurorack VCA module
• 6-pin ribbon cable for HEXa(s)r integration
