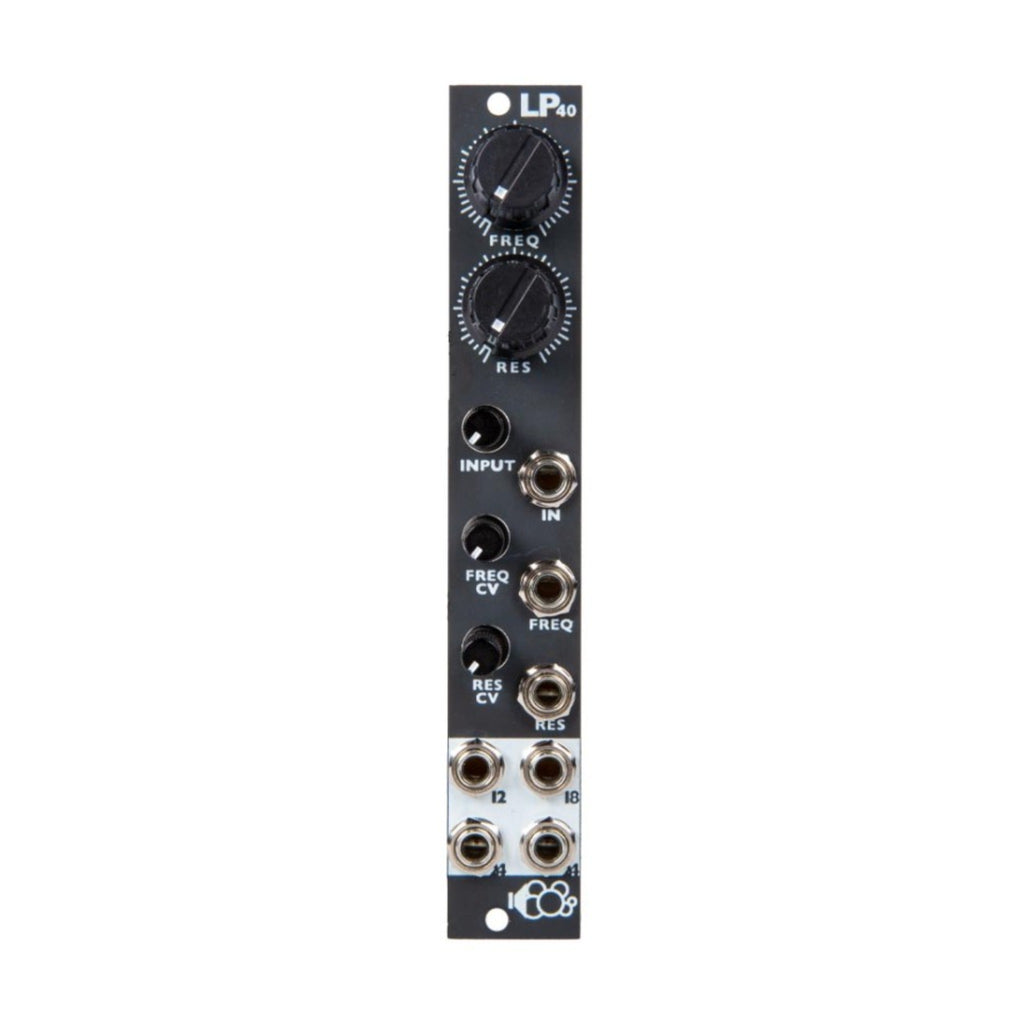

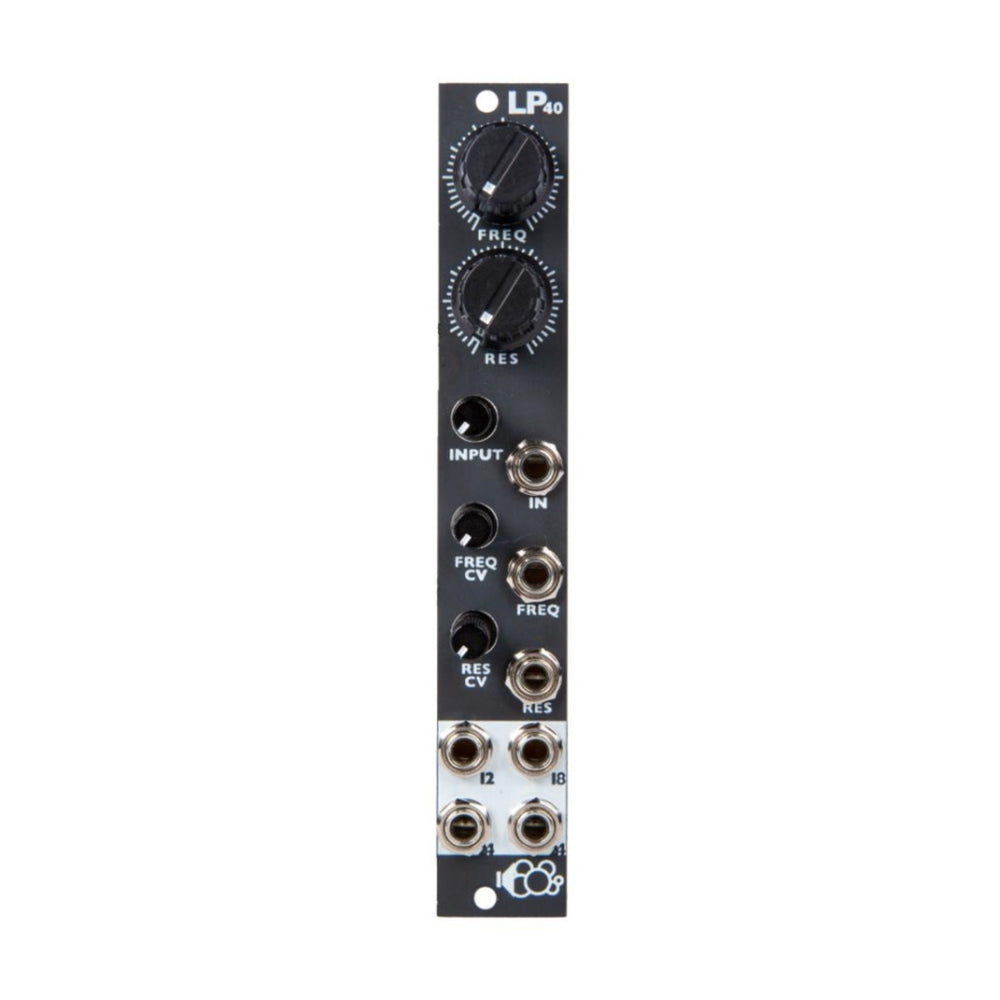

The Bubblesound LP40 is an analog low-pass filter Eurorack module based on the SSI2140 chip, the same core architecture used in the Sequential Prophet-5 Rev4. It delivers smooth, musical filtering with a rich analog character, offering classic subtractive synthesis tone shaping with modern voltage control flexibility.
With voltage-controlled cutoff and resonance, the LP40 is capable of everything from warm, subtle filtering to aggressive resonance that can self-oscillate into clean sine waves, making it useful as both a filter and sound source. Its low noise and distortion design ensures transparent signal handling while still preserving the natural “buttery” analog character.
Multiple slope outputs provide additional flexibility for sound design, allowing simultaneous access to different filter responses for complex routing and tonal variation.
Features
• Analog low-pass filter based on SSI2140 architecture (Prophet-5 Rev4 lineage)
• Voltage-controlled cutoff frequency with attenuated CV input
• Voltage-controlled resonance with self-oscillation capability
• Input level control with attenuation
• Multiple slope outputs: 12 dB, 18 dB, and dual 24 dB outputs
• Parallel output options for advanced signal routing and layering
• Low noise and low distortion analog signal path
• Capable of generating sine wave tones via resonance self-oscillation
• Designed for rich, musical filtering of bass, leads, and percussion
• Compact Eurorack format for modular synthesis systems
Specifications
• Product: Bubblesound LP40 Analog Low-Pass Filter
• Filter Type: SSI2140-based analog low-pass filter
• Control: CV control for cutoff and resonance
• Outputs: 12 dB, 18 dB, 24 dB (dual 24 dB outputs)
• Width: 4HP
• Depth: 25 mm
• Power Consumption: 21 mA @ +12V / 50 mA @ -12V
Included
• Bubblesound LP40 Eurorack filter module
