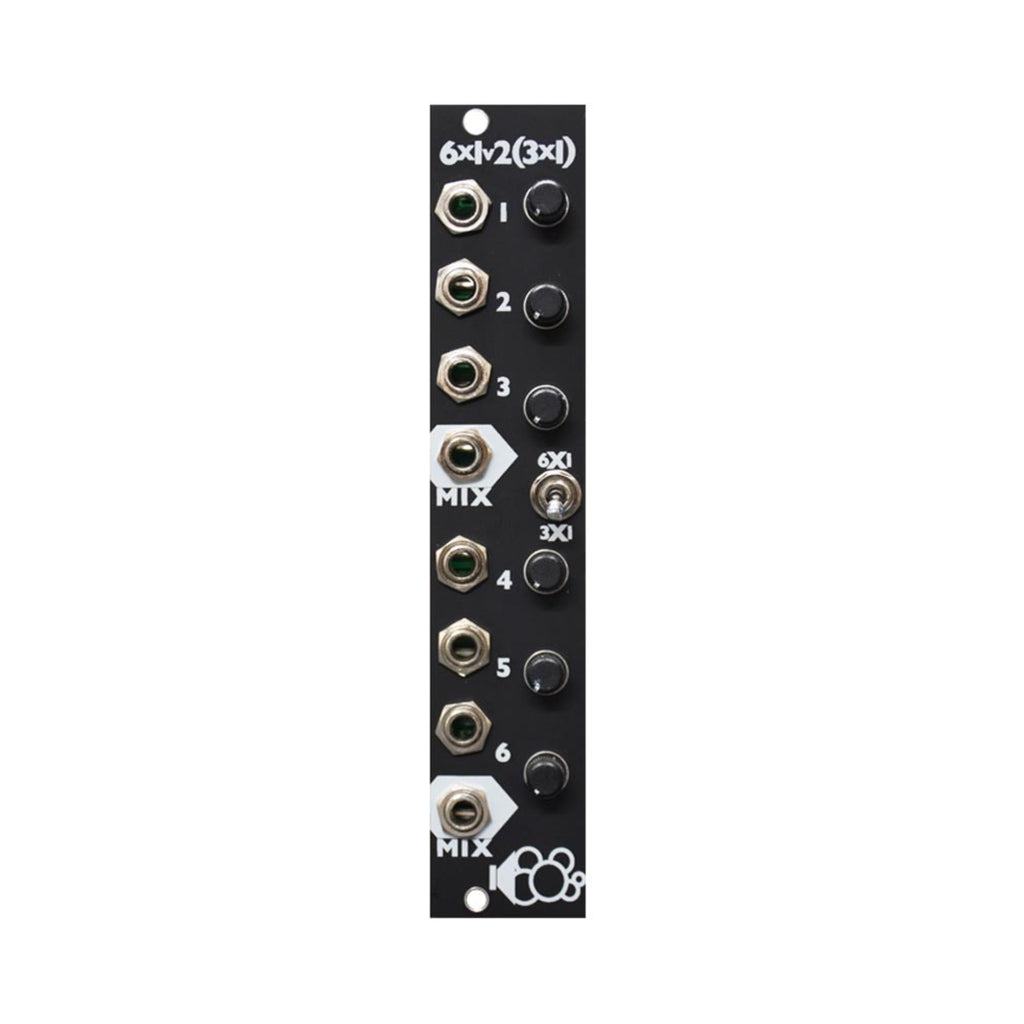

The 6X1(3X1) MIX6 is a compact Eurorack mixer module offering flexible routing as a dual 3-channel mixer, a single 6-channel mixer, or a stereo 3-channel mixer. Designed for versatility in both audio and control voltage applications, it provides multiple configuration options in a minimal 5HP footprint.
In 6-channel mode, all inputs are summed to a single output while maintaining an additional active output for channels 1–3, allowing for use as an effects send or auxiliary bus. In dual 3-channel mode, the module functions as two independent 3-channel mixers with separate outputs. It can also operate as a stereo mixer through its normalization system, where inputs 1–3 are automatically routed to inputs 4–6 unless overridden by external patching.
The DC-coupled design allows the MIX6 to process both audio signals and control voltages, making it suitable for modulation mixing as well as audio summing. Its low-noise, low-distortion architecture ensures clean signal handling even in complex patch environments.
Features
• Flexible 3-in-1 Eurorack mixer (6-channel, dual 3-channel, or stereo mode)
• Three operational modes: 6×1 mix, dual 3×1 mix, or stereo 3-channel mixer
• Input normalization for automatic stereo routing (1–3 to 4–6)
• Dedicated summed outputs with additional auxiliary output in full mix mode
• DC-coupled design for both audio and CV signal processing
• Low noise and low distortion signal path
• No bleed between channels for clean mixing performance
• Compact and low-profile design for space-efficient systems
• Optimized for modular synthesis mixing and routing flexibility
Specifications
• Product: MIX6 6X1(3X1) Mixer Module
• Channels: 6 inputs
• Modes: 6-channel mix / dual 3-channel mix / stereo 3-channel mix
• Signal Type: DC-coupled (audio + CV compatible)
• Width: 5HP
• Depth: 25 mm
• Power Consumption: +40 mA / -65 mA
Included
• MIX6 Eurorack mixer module
