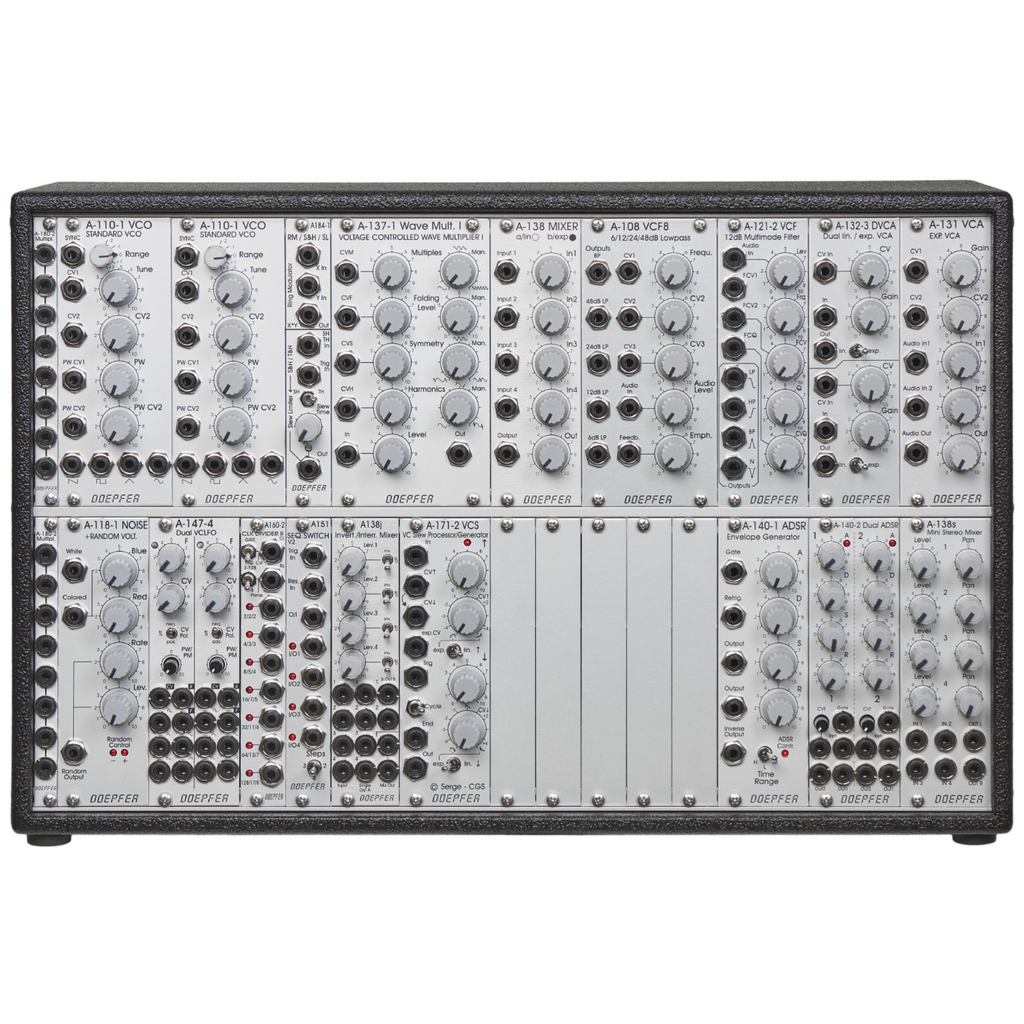

Doepfer A-100BS3L6v Basic System 3 in LC6V Case
The Doepfer A-100BS3L6v Basic System 3 combines the complete A-100 Basic System 3 module configuration with the black-coated A-100LC6V Low Cost Case. It provides a comprehensive analog modular synthesizer environment with oscillators, filters, VCAs, envelopes, LFOs, mixers, utilities, clock processing, switching, waveshaping, and signal-routing functions in a compact 6U format.
Two A-110-1 Standard VCOs provide the primary analog sound sources. They are complemented by the A-108 multi-slope low-pass filter and A-121-2 multimode filter, both of which can also be driven into self-oscillation for additional sound-generation possibilities. The A-137-1 Wave Multiplier expands the available timbral palette, while the A-184-1 provides ring modulation, sample-and-hold, track-and-hold, and slew functions.
For modulation, the system combines traditional ADSR control with dual envelopes, voltage-controlled LFOs, a voltage-controlled slew processor, clock division, and sequential switching. The A-138 series mixers, A-131 and A-132-3 VCAs, and dual A-180-2 multiples provide extensive signal-management capabilities.
The included A-100LC6V is Doepfer's black-coated version of the 6U Low Cost Case. It provides two 84 HP rows, two bus boards, and an integrated A-100PSU3 power supply. Unlike the P6 suitcase, the LC6V uses a simplified wooden enclosure without a removable transport cover, making it a cost-effective choice for studio and fixed modular installations.
The PSU3 supplies up to 2000 mA at +12V, 1200 mA at -12V, and 4000 mA at +5V. Five 4 HP blank panels are included in the system, leaving room for future expansion. Alex4
Key Features
- Complete A-100 Basic System 3
- Black-coated A-100LC6V Low Cost Case
- 6U Eurorack format
- Two 84 HP rows
- 168 HP total capacity
- Dual analog oscillators
- Two complementary analog filters
- Analog waveshaping and ring modulation
- Multiple envelopes and LFOs
- Voltage-controlled modulation processing
- Clock division and sequential switching
- Multiple VCAs, mixers, and signal-routing utilities
- Suitable for subtractive, paraphonic, percussion, and experimental synthesis
- Expansion space with removable blank panels
- Integrated A-100PSU3
- +12V: 2000 mA maximum
- -12V: 1200 mA maximum
- +5V: 4000 mA maximum
- Two integrated bus boards
- Black-coated wooden enclosure
What’s Included
- 1 x A-108 6/12/24/48dB Low Pass Filter
- 2 x A-110-1 Standard VCO
- 1 x A-118 Noise / Random
- 1 x A-121-2 Multimode Filter
- 1 x A-131 Exponential VCA
- 1 x A-132-3 Dual Linear / Exponential VCA
- 1 x A-137-1 Wave Multiplier I
- 1 x A-138j Inverting / Interrupting Janus Mixer
- 1 x A-138b Logarithmic Mixer
- 1 x A-138s Mini Stereo Mixer
- 1 x A-140 ADSR Envelope Generator
- 1 x A-140-2 Dual Mini ADSR
- 1 x A-147-4 Dual VCLFO
- 1 x A-151 Quad Sequential Switch
- 1 x A-160-2 Clock Divider II
- 1 x A-171-2 VC Slew Processor / Generator
- 2 x A-180-2 Multiple
- 1 x A-184-1 Ring Modulator / S&H / T&H / Slew Limiter
- 5 x 4 HP blank panels
- 5 x A-100C15 15 cm patch cables
- 10 x A-100C30 30 cm patch cables
- 15 x A-100C50 50 cm patch cables
- 5 x A-100C80 80 cm patch cables
- A-100LC6V powered case
