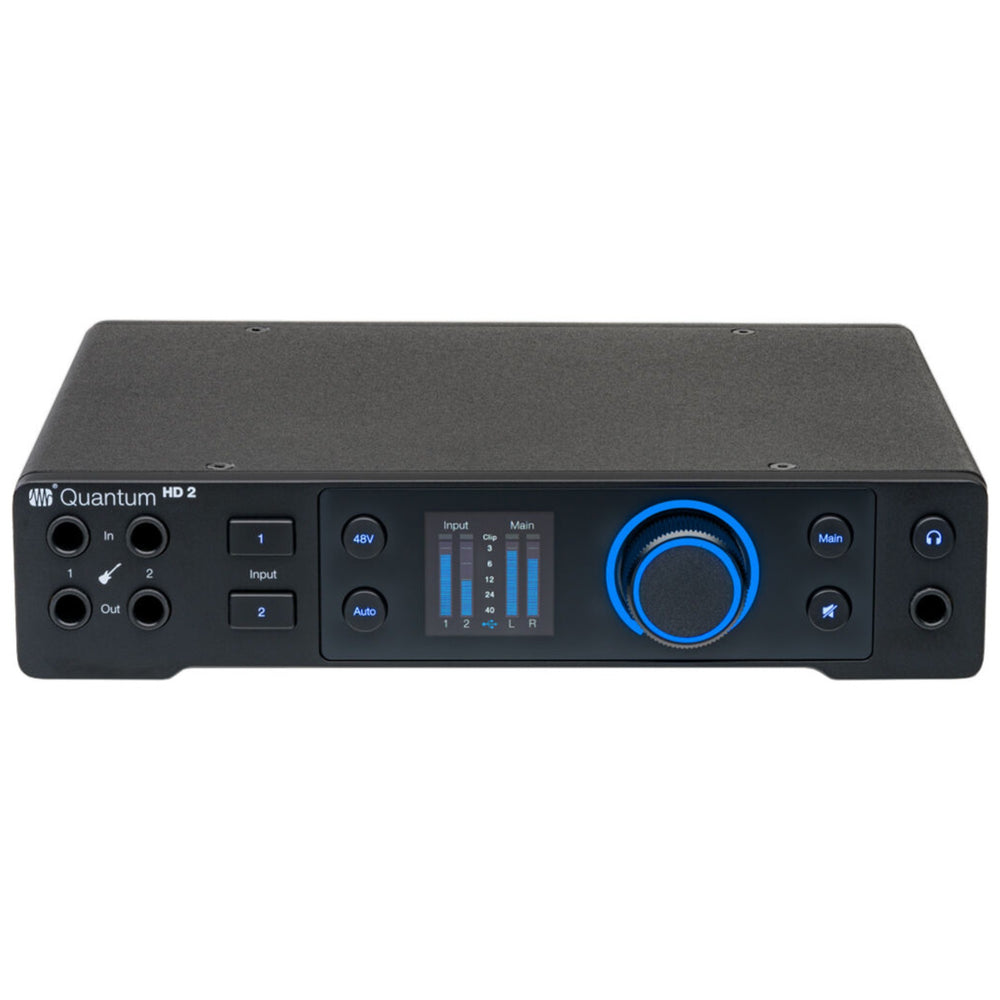

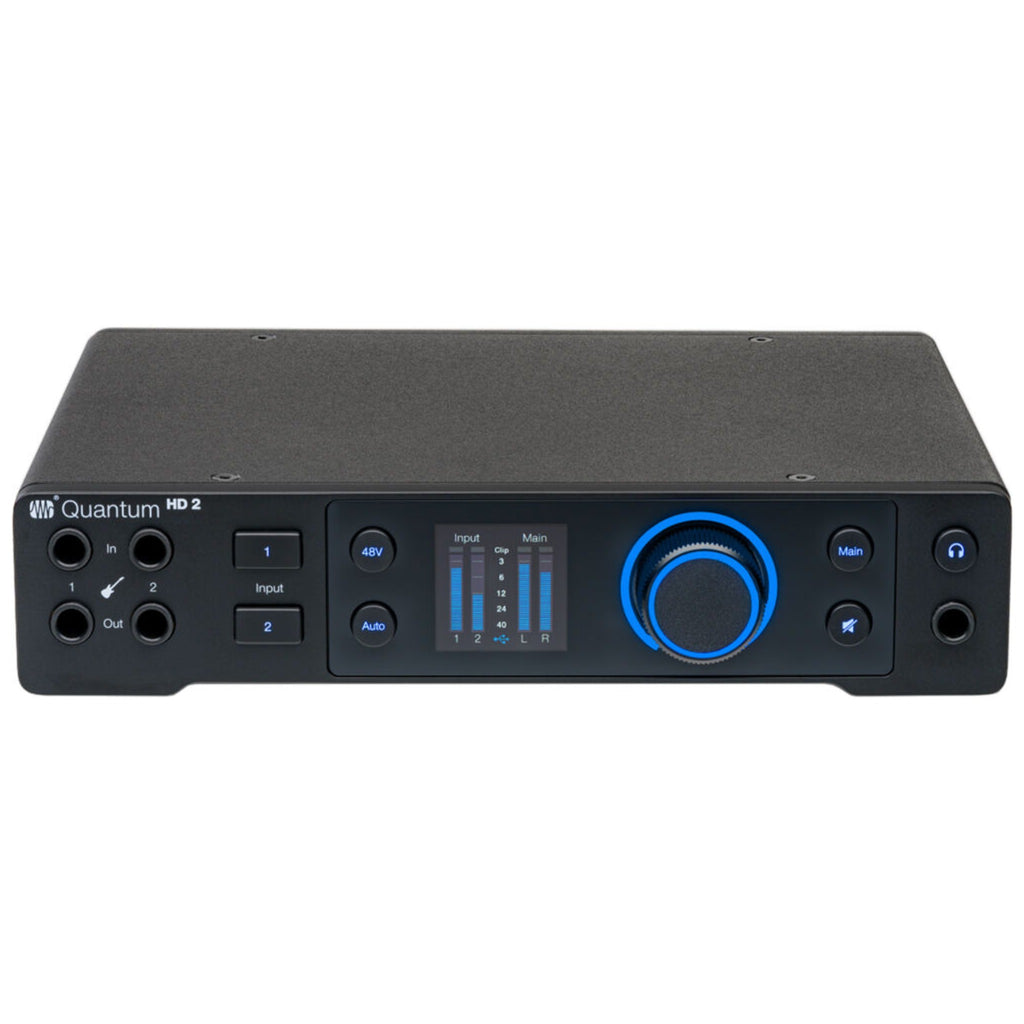

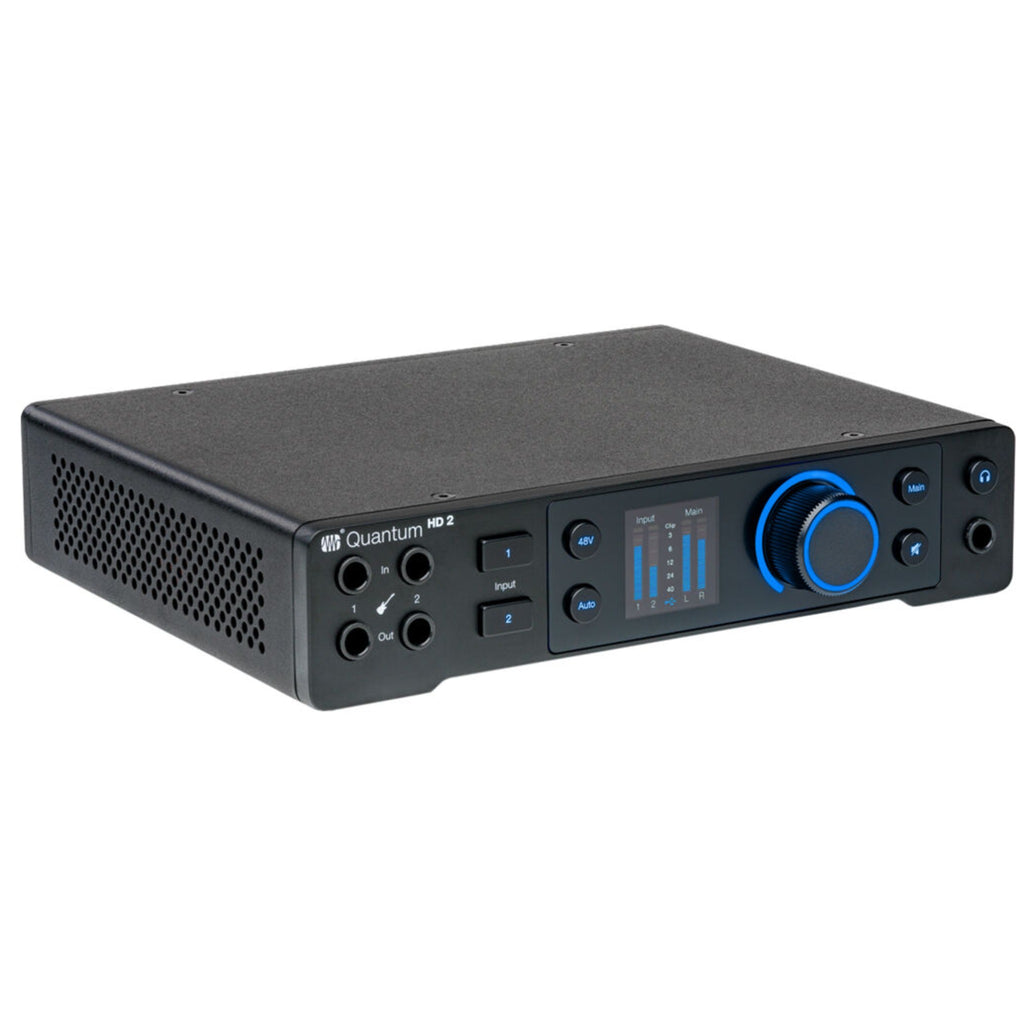

PreSonus Quantum HD 2 USB-C Audio Interface.
The Quantum HD 2 is a high-performance USB-C audio interface built for musicians, producers, and content creators who need professional recording quality and flexible connectivity. Featuring next-generation MAX-HD microphone preamps, high-resolution converters, and powerful monitoring tools, it delivers clear, low-latency audio for studio recording, streaming, and content creation. With support for both desktop and mobile devices, the Quantum HD 2 offers a versatile and modern recording solution.
Key Features
• 20x24 USB-C Audio Interface – Professional desktop interface for recording, production, and streaming.
• MAX-HD Mic Preamps – Two high-definition microphone preamps with up to +75 dB of clean gain.
• Hi-Z Instrument Inputs – Front-panel inputs optimized for guitar and bass, developed with Fender engineers.
• High-Resolution Conversion – 32-bit / 192 kHz converters with 124 dB dynamic range.
• Auto Gain Function – Automatically sets optimal input levels for microphones and instruments.
• Reamp Outputs – Two outputs allow tracks to be sent from your DAW to amps or external gear.
• DSP Monitoring & Loopback – Built-in DSP monitor mixer for streaming and custom monitoring mixes.
• Expanded Connectivity – ADAT optical input for up to 16 additional channels plus stereo S/PDIF I/O.
• Mobile & Desktop Recording – Compatible with macOS, Windows, iOS, and Android devices.
Specifications
• Interface Type: USB-C Desktop Audio Interface
• Inputs / Outputs: 20 x 24
• Audio Resolution: 32-bit / 192 kHz
• Dynamic Range: 124 dB
• Mic Preamps: 2 MAX-HD
• Max Preamp Gain: +75 dB
• Instrument Inputs: 2 Hi-Z
• Reamp Outputs: 2
• Main Outputs: 2 Balanced 1/4" TRS
• Additional Outputs: 2 Balanced 1/4" TRS
• Headphone Output: 1 High-Power
• Digital I/O: ADAT (up to 16 channels) / S/PDIF Stereo
• Connectivity: USB-C
• Compatibility: macOS, Windows, iOS, Android
• UPC: 673454012150

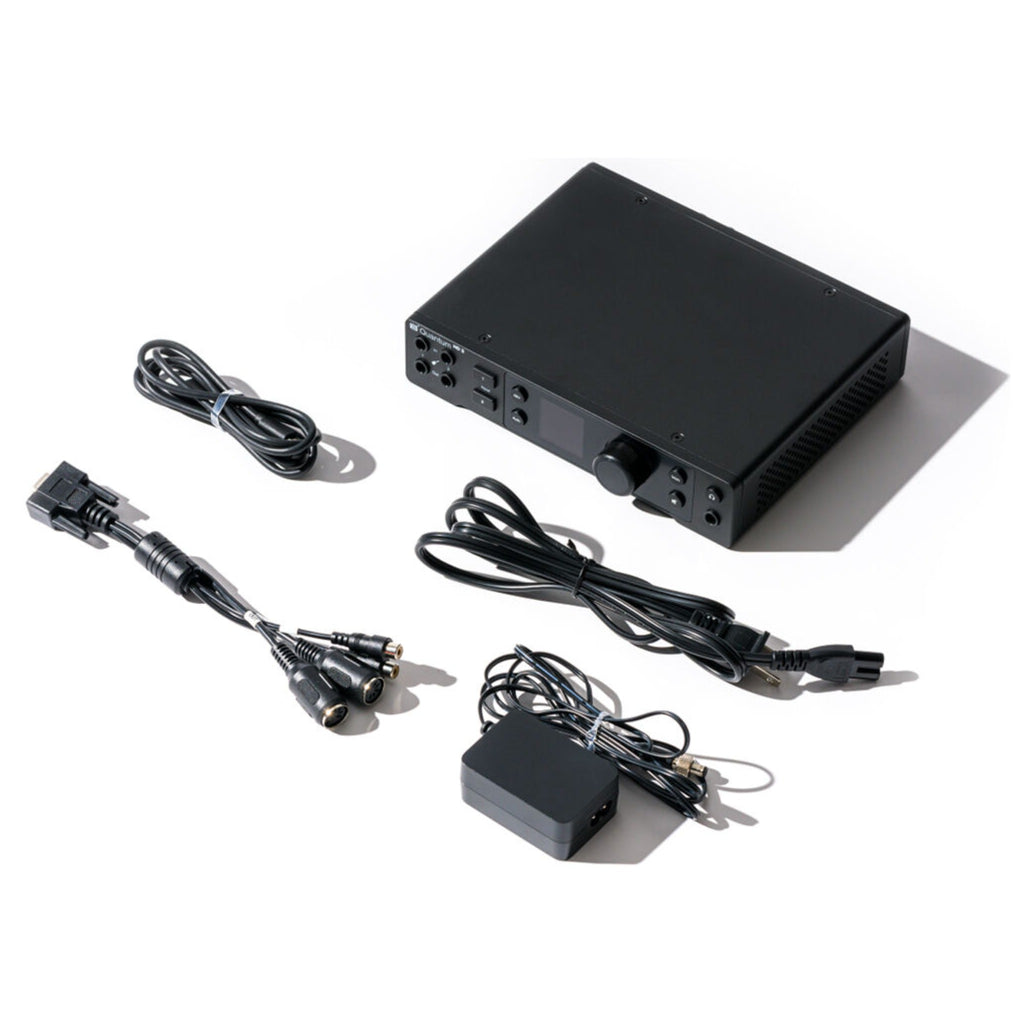

What’s Included
• PreSonus Quantum HD 2 USB-C Audio Interface
• DB-9 Breakout Cable (MIDI and S/PDIF I/O)
• USB-C to USB-C Cable
• AC Power Adapter
• Studio One Professional Software License
• 12-Month Studio One+ Add-On Subscription
• Owner’s Manual
