Description:

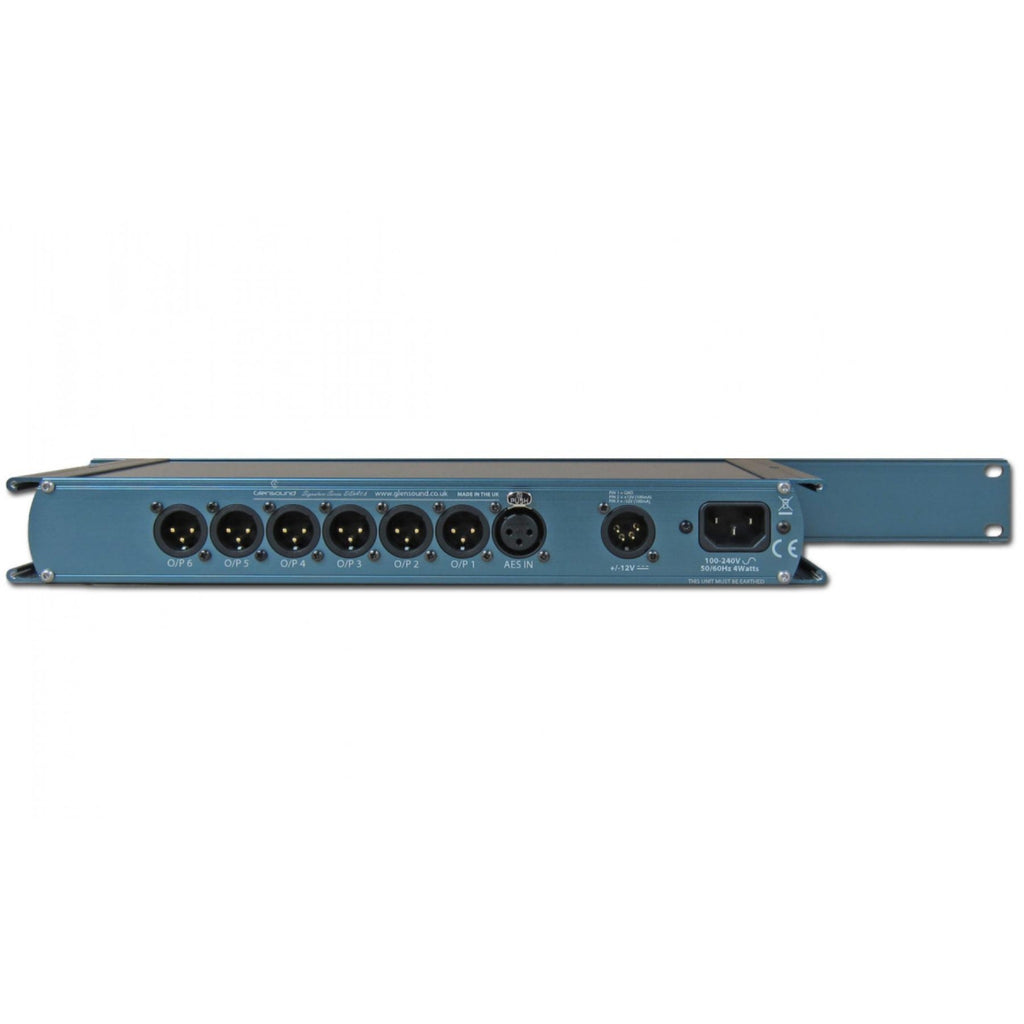

The DDA 1:6 is a cost effective distribution amplifier for digital AES signals. Via rear panel XLRs there is a single input and 6 outputs.
The output signals can pass straight through without any normalising. This is useful if you need syncronisation to be maintained. There is also an option to re-normalise all of the output signals to ensure that all outputs are at the full digital level again. It is important to realise that re-normalising a digital signal while often desirable, does cost one sample.

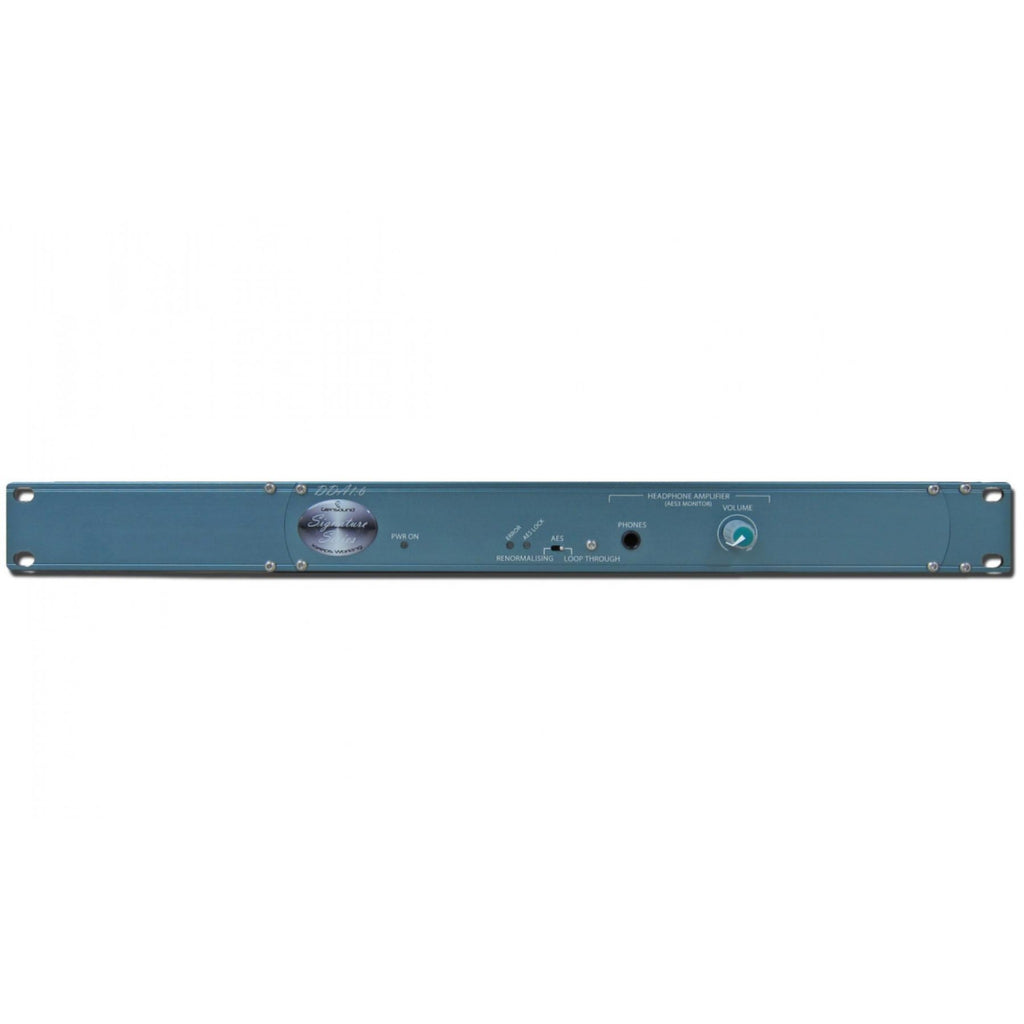

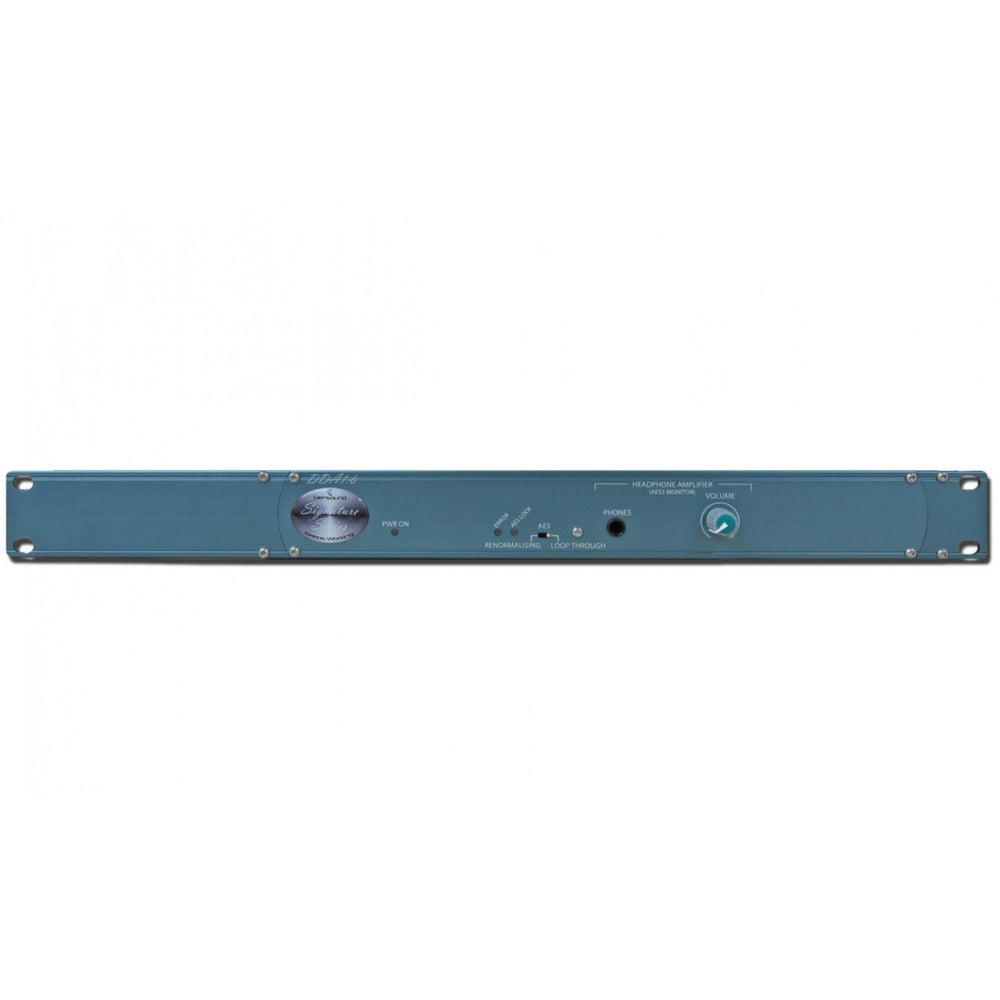

A headphone monitoring position is also provided on the front panel via a 6.35mm stereo jack socket. This allows monitoring of the incoming audio signal via a variable level pot.
LEDs indicate AES lock or if there is an AES error.
Signature Series Standard Features
19" Rack Mount Ears
A Signature unit can rack mount in a 1U 19” rack, regardless of the size of the unit. Rack ears are included as standard with every unit.
Front Or Rear Mounting
A Signature unit can be rack mounted via the front panel or if it is more convenient, via the rear panel by simply swapping the rack ears over.
Side Wings For Flat Surface Mounting
A Signature unit has side wings with mounting holes at the top and bottom, allowing flush fixing from above OR underneath.
Internal Switch Mode AC Power Supply
A Signature unit has an internal switch mode AC power supply, allowing worldwide power connections from 100-240V via an IEC socket.
12V DC Power Connection
All Signature units (except PS1) have a 4 pin XLR ±12V DC socket for connection to the PS1 Power Station. This can act as the primary or backup power source.
Quick Find Manual
A Signature unit has a QR code attached. This can be scanned to simply and quickly locate the manual and technical information.
Other
Neutral colour scheme to complement Equipment Scheme
Rack screws included
Modern design
May be delivered with a black finish
Features:
- 1 x AES input, 6 x AES outputs
- AES can be re-normalised
- AES can loop straight through un-normalised
- Front panel headphone connection with level control
- All I/O on XLR
Specs:
- AUDIO AES INPUT TO OUTPUT
- Input Impedance: 110 Ohms
- Output Impedance: 110 Ohms
- Maximum & Minimum Levels: 200mV to 10V peak to peak
- Sample Frequency Range: 32 - 192 kS/s
- Resolution: 8, 16, 24 or 32 bit
- Input Type: 3 pin Neutrik XLR transformer balanced
- Output Types: 6 off 3 pin Neutrik XLRs each isolated & transformer balanced
- Noise: -145.7 dBFs unweighted 22Hz to 22kHz
- Distortion: 0.00005% (@ +8 from line up)
- Loop Through: Output signal integrity matches input signal
- Re-normalised: Output signal is reconstituted and signal integrity returned to normal
- HEADPHONE MONITORING
- Headphone Level: 0dB (into 600 Ohms) with -18dBFs input
- Gain Range: +6dB to Off
- Output Clip Level: +18dB (into 600 Ohms)
- Frequency Response: 25Hz: -0.25dBu to 32kHz: +0.25dBu
- Noise: -77dBu @ Max Gain (Unweighted 22Hz to 22kHz)
- Distortion: 100Hz = 0.006% 1kHz = 0.005% 10kHz = 0.011%
- POWER
- Mains Input: Filtered IEC, 100 to 240VAC 47 - 63Hz
- AC Consumption: 1.4 Watts @ 230VAC
- DC Input: 4 Pin Neutrik XLR plug +/- 12V
- DC Consumption: +/-12V Internal Mains Fuse: 20mm 1A Anti Surge
- PHYSICAL
- Size: 336 x 123 x 44mm (LxDxH) no rack ears, 482mm 19” (1RU) with rack ears
- Weight: 0.75kg
- Shipping Weight: 2.25kg
- Shipping Carton: Rugged export quality cardboard carton 610 x 420 x 130mm LxDxH
- Mechanics: All aluminium construction, anodised and laser etched
