This complete bundle includes everything required to configure up to 5 channels of wireless microphones.
The new Diversity Architectural Antenna by RF Venue is a high-performance antenna system designed for wireless microphones. With its slim profile, this antenna can be installed on a wall or ceiling and painted to blend seamlessly with any interior. Featuring a unique patent-pending dual-feed design, it provides both A and B diversity connections, eliminating the need for two separate antennas, resulting in a cleaner, more professional look appreciated by room designers and architects.
The Diversity Architectural Antenna is quick to install, featuring a rear plate with multiple mounting hole options for wall or ceiling installation. The rear plate connects to the front plate with included mounting screws. Simply connect the two rear-mounted BNC-terminated coaxial cables to your in-wall or in-ceiling coaxial cable run, and the antenna is ready to use.
Building on the success of the Diversity Fin antenna, the Diversity Architectural Antenna eliminates common signal dropouts caused by angle and orientation changes of the RF signal. It is ideal for conference rooms, multi-purpose meeting spaces, training rooms, and houses of worship. The sleek, industrially designed enclosure fits into any interior while providing professional RF performance.
Key Features:
- Blends seamlessly with any background
- Eliminates signal dropouts
- Combines two antennas in one unit
- Cost-effective and easy to install
DISTRO4 is a 4-way active antenna splitter with a cascade port and external power that allows up to 5 wireless receivers to share one pair of diversity antennas. It comes in a full metal housing and includes 8 BNC cables and 4 DC power cables for easy receiver connection. Multiple DISTRO4 units can be linked together to support up to 25 receivers on a single diversity antenna pair.
Using an antenna distributor is essential for utilizing directional antennas with more than two receivers. With a single Diversity Fin antenna and DISTRO4, you can avoid issues like crosstalk from multiple whip antennas and eliminate unnecessary power supplies that can cause additional problems.
RF Venue Coaxial Cables: Coaxial cabling is critical to achieving flawless RF performance. Even small damage to the cable can result in significant signal loss or failure. RF Venue provides premium, low-loss, 50Ω RG8X coaxial cables with BNC male connectors. These cables are custom-made to our specifications, double-shielded for optimal loss and flexibility. Each cable is terminated in-house and quality-checked using calibrated Agilent network analyzers.

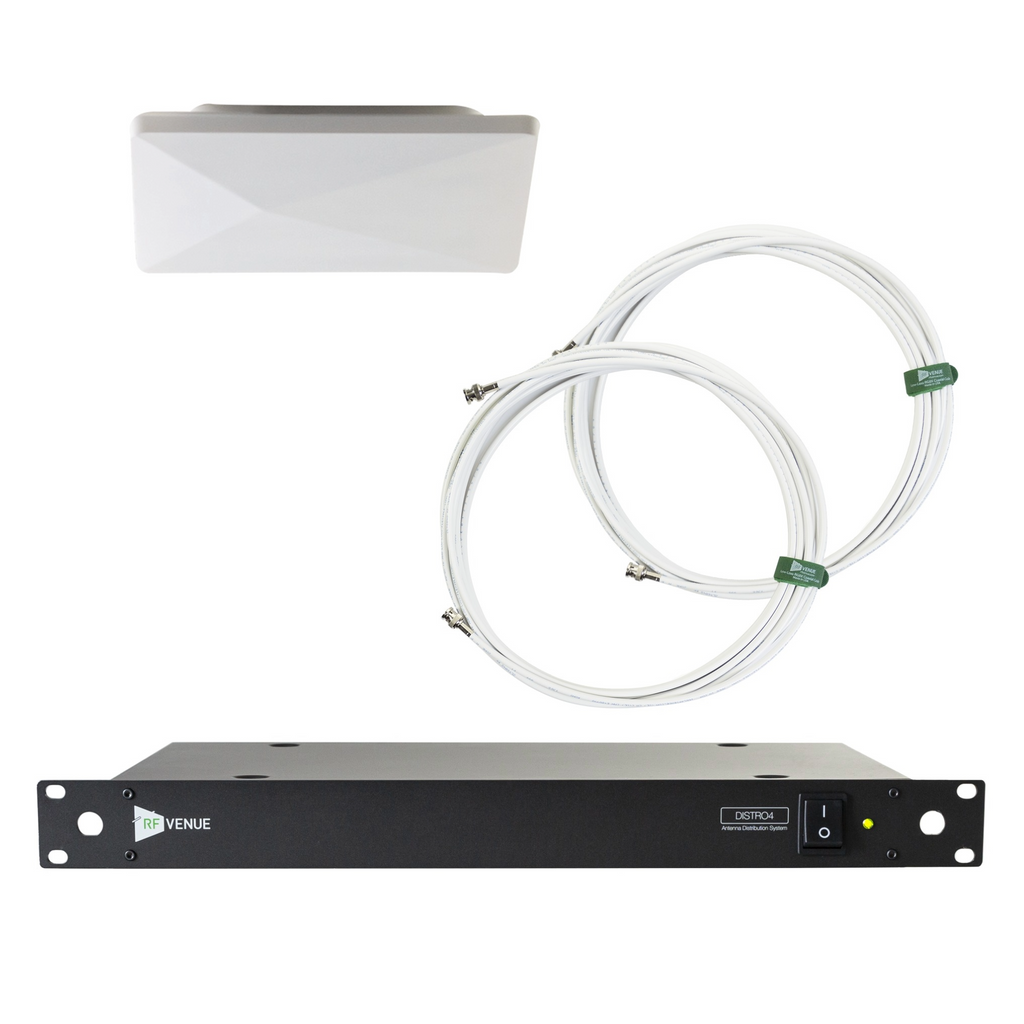

What's Included:
- Diversity Architectural Antenna
- DISTRO4 Antenna Distribution System with (10) BNC jumpers, (4) DC jumpers, and (1) AC power cord
- Two White 25' RG8X BNC cables
