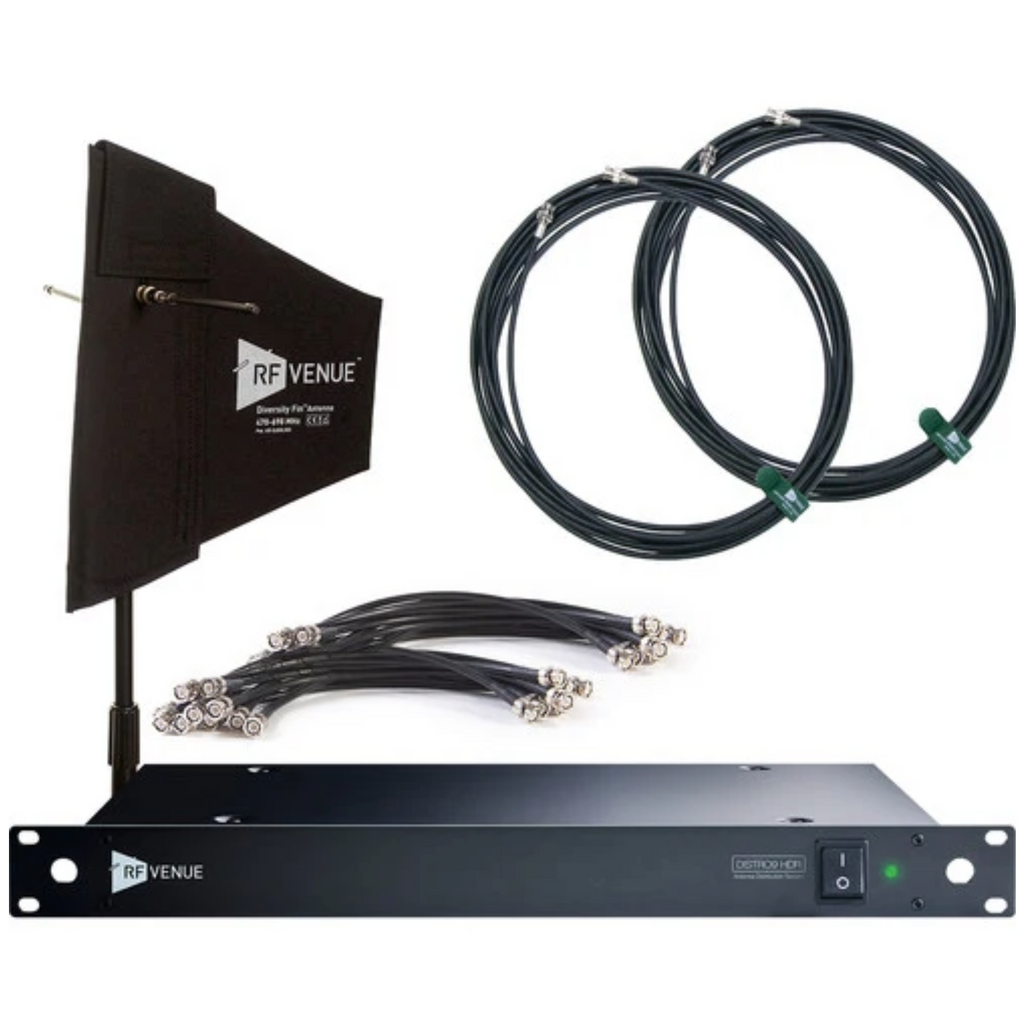

This antenna distribution bundle from RF Venue offers a complete solution for achieving professional-quality RF signal distribution for up to nine wireless microphones.
Included in the bundle is a black Diversity Fin antenna with a threaded mounting block for attaching it to a stand, the high-performance DISTRO9 HDR 9-channel multi-zone antenna distributor, premium low-loss double-shielded coaxial cables, and a DC power cable kit.
This versatile antenna distribution system is perfect for a variety of applications, from high-profile live sound events to film and TV productions, as well as routine installations in schools and houses of worship. It supports diversity microphones from any brand.
The DISTRO9 HDR is designed and assembled in the USA and ETL listed in both the USA and Canada.
Black Diversity Fin Antenna
The Diversity Fin is a multi-purpose antenna designed to reduce dropouts through its cross-polarized hybrid design. It combines one LPDA and one dipole antenna in an orthogonal (right-angle) configuration, allowing it to capture both vertically and horizontally polarized waves. This design performs the same function as two "shark fin" paddles while offering significant improvements in RF and audio performance.
The antenna includes a mounting block with 1/4"-20, 3/8"-16, and 5/8"-27 threads, allowing you to secure it to the stand of your choice. It also includes a protective cover for outdoor use to safeguard the antenna against the elements.
DISTRO9 HDR Multi-Zone Antenna Distributor
The DISTRO9 HDR provides a unique approach to RF signal distribution for wireless microphones. It replaces the traditional internal splitters found in most antenna distribution systems with advanced "divide-by-three" circuitry, providing up to nine low-noise channels of diversity wireless. The unit utilizes low-noise amplifiers and superior gain structure to offer high dynamic range over the entire spectrum.
Any RF output from the DISTRO9 HDR can be cascaded to a second DISTRO9 HDR (sold separately), allowing for up to 17 wireless microphone channels in just 2 RU of rack space. The system’s two zone antenna inputs make it ideal for multi-zone installations, providing coverage across large areas or multiple rooms, with DC power available for in-line amplifiers or active antennas.
The robust internal power supply delivers clean DC power to up to nine wireless microphone receivers using the included DC power cable kit. The unit can also be powered directly by a DC battery source, making it ideal for location sound-cart applications.
The DISTRO9 HDR is ETL listed, meeting bid specification requirements for municipal, government, and other high-profile projects. It also features an internal I/O section that allows for future module add-ons, such as remote web-based spectrum monitoring and bandpass filtering.
Low-Loss Coaxial Cables
The bundle includes RF-Venue-tested, made-in-the-USA RG8X low-loss coaxial cables, ensuring reliable performance.
- 2 x 25' RG8X coaxial cables
- 10 x 2' RG8X coaxial cables
- 10 x 1.5' RG8X coaxial cables
DC Power Distribution Cables
The included DC power cable kit distributes power to up to nine wireless receivers.
