This antenna distribution bundle from RF Venue offers a comprehensive solution for achieving professional-quality RF signal distribution for up to nine wireless microphones.

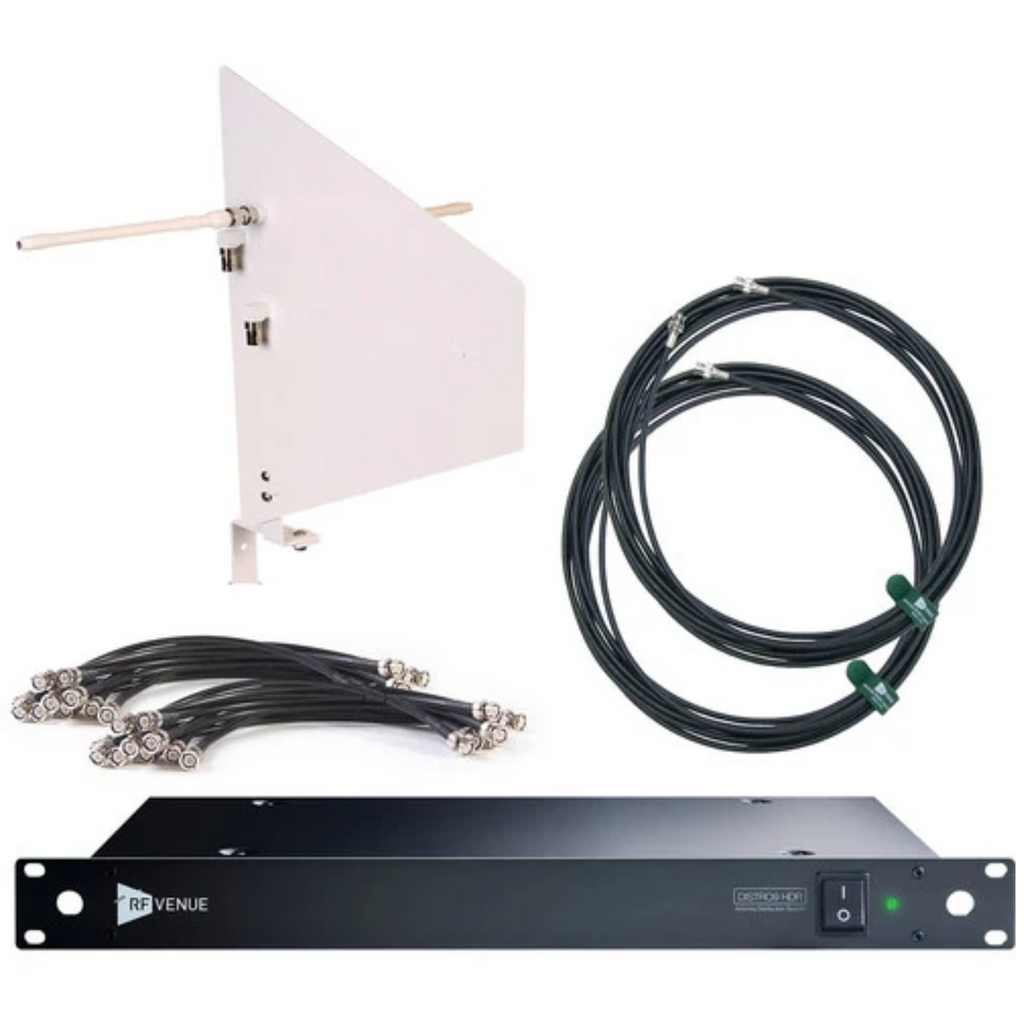

The bundle includes a white Diversity Fin antenna with a wall mount bracket (for permanent installations), the high-performance DISTRO9 HDR 9-channel multi-zone antenna distributor, a set of premium low-loss double-shielded coaxial cables, and a DC power cable kit.
Whether it's for high-profile live sound events, film and TV productions, or routine installations in schools and houses of worship, this versatile antenna distribution system works well for diversity microphones from any brand.
The DISTRO9 HDR is designed and assembled in the USA and ETL listed in both the USA and Canada.
White Diversity Fin Antenna with Wall Mount Bracket
The Diversity Fin is a multi-purpose antenna that reduces dropouts with a cross-polarized hybrid design. It integrates one LPDA and one dipole antenna in a right-angle configuration. One element captures vertically polarized waves, and the other captures horizontally polarized waves. This design performs the same function as two "shark fin" paddles while significantly enhancing RF and audio performance. The antenna comes with a wall mount bracket for permanent installations.
DISTRO9 HDR Multi-Zone Antenna Distributor
The DISTRO9 HDR introduces a novel approach to RF signal distribution for wireless microphones. It replaces traditional internal splitters with advanced “divide-by-three” circuitry, enabling up to nine low-noise channels of diversity wireless. The system utilizes low-noise amplifiers and superior gain structure to maintain a high dynamic range across the spectrum.
Any DISTRO9 HDR RF output can be cascaded to a second unit (sold separately), expanding to 17 wireless microphone channels within just 2 RU of rack space. The two-zone antenna inputs allow coverage for large areas or multiple rooms, with DC power provided for in-line amplifiers or active antennas.
The internal power supply provides clean DC power to nine wireless microphone receivers using the included DC power cable kit, and the system can also be powered by a DC battery source for location sound-cart setups.
ETL listed to meet bid specifications for municipal, government, and other high-profile projects, the DISTRO9 HDR is highly adaptable for current and future wireless microphone system needs.
Low-Loss Coaxial Cables
The bundle includes RF-Venue-tested, made-in-the-USA RG8X low-loss coaxial cables, ensuring quality performance.
- 2 x 25' RG8X coaxial cables
- 10 x 2' RG8X coaxial cables
- 10 x 1.5' RG8X coaxial cables
DC Power Distribution Cables
The DC power cable kit is designed to distribute power to nine wireless receivers.
