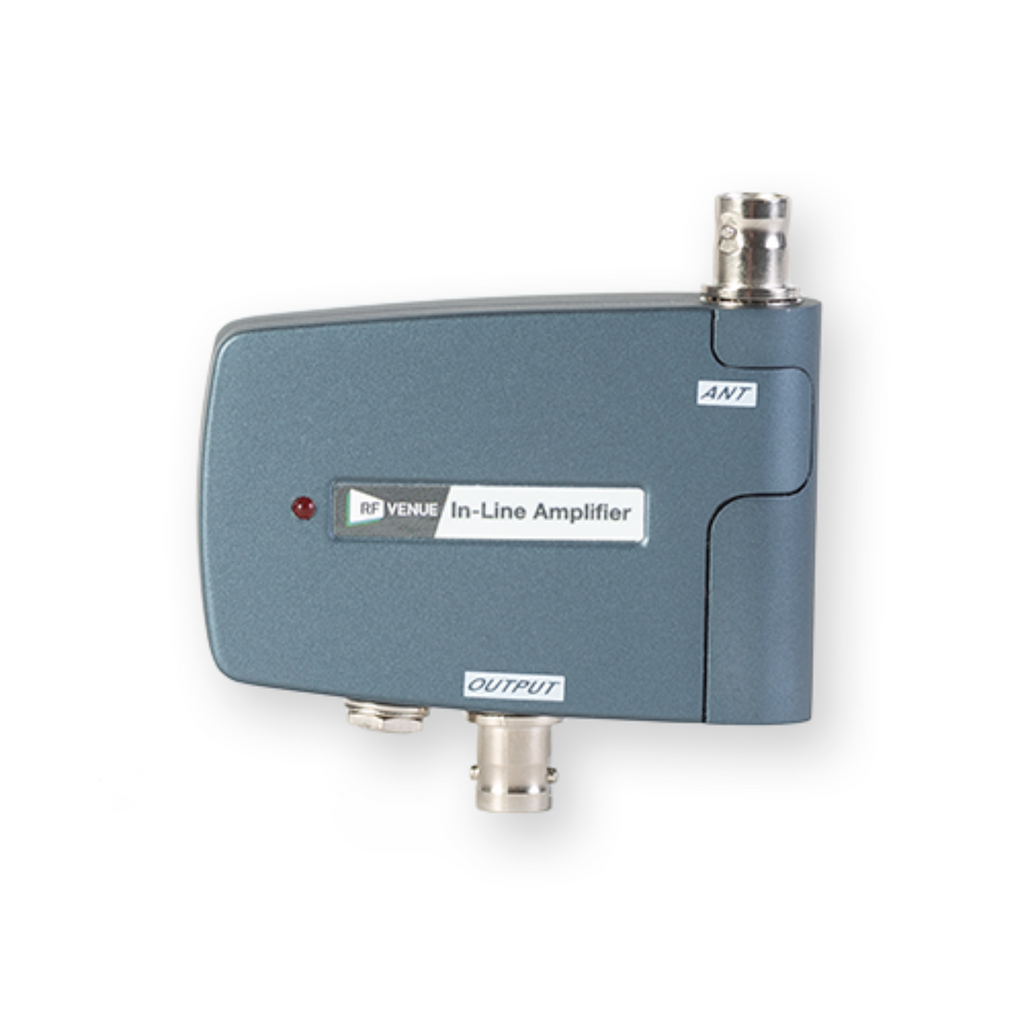

RF Venue ILAMP-ACT Active In-Line Amplifier

RF VenueSKU: 1035470

Price:
Sale price$349.00Found a better price?

Or as low as $29.08 per month over 12 months. Learn More
Special Order This item is not in stock and can be obtained by placing a Special Order. Please note that Special Orders cannot be canceled or refunded.
Estimated ship date if ordered now:

Add Accidental Protection from CPS LogoLearn More
Contact Our Specialists Need specific product information or not sure where to start? Our in-house specialists are here to help you make the right decision. With extensive knowledge of our products, they are ready and eager to assist you.

Description

This in-line amplifier is designed to reduce signal loss over long coaxial cable runs, compensating for up to 10dB of cable attenuation, which is approximately 20 meters of RG-58 cable. It can be powered either via an antenna distributor/receiver or a DC adapter (+12V/0.5A). A red indicator light shows when the unit is receiving power. For extended signal compensation, up to two amplifiers can be cascaded.

Note: A BNC female to BNC female adapter or coax jumper (not included) is required for cascading. Two amplifiers are needed for diversity applications. A wall mount adapter is included.

Specifications:

  • Frequency Range: 470–960 MHz
  • Nominal Gain: 10 dB
  • Operating Voltage: DC +12V
  • Power Levels: -60 to -20 dBm
  • RF Input/Output: BNC Female
  • Dimensions: 75mm x 18.2mm x 77mm
  • Weight: 140g
