Although the VX 5.2 is the smallest Dual Concentric full-range loudspeaker in the VX range, it delivers an exceptional performance-to-size ratio. It provides a compact, yet punchy and sonically articulate solution for small-scale performance sound reinforcement, demanding background music, and high-intelligibility speech applications where clarity and natural vocal reproduction are essential. Thanks to its twin driver design and flexible mounting options, the VX 5.2 is also ideal for complementing larger systems, making it an excellent choice for both installed and portable applications. Sold as a pair.
Dual Concentric Driver

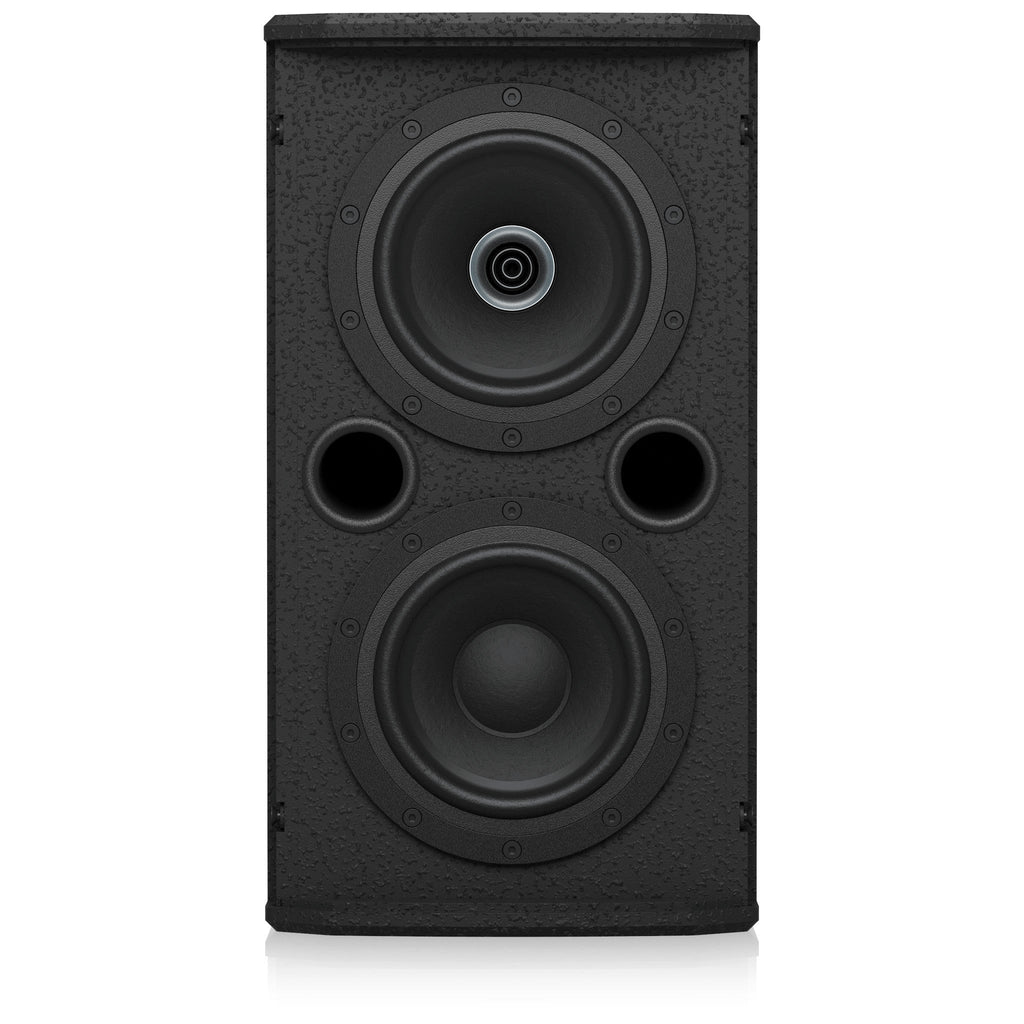

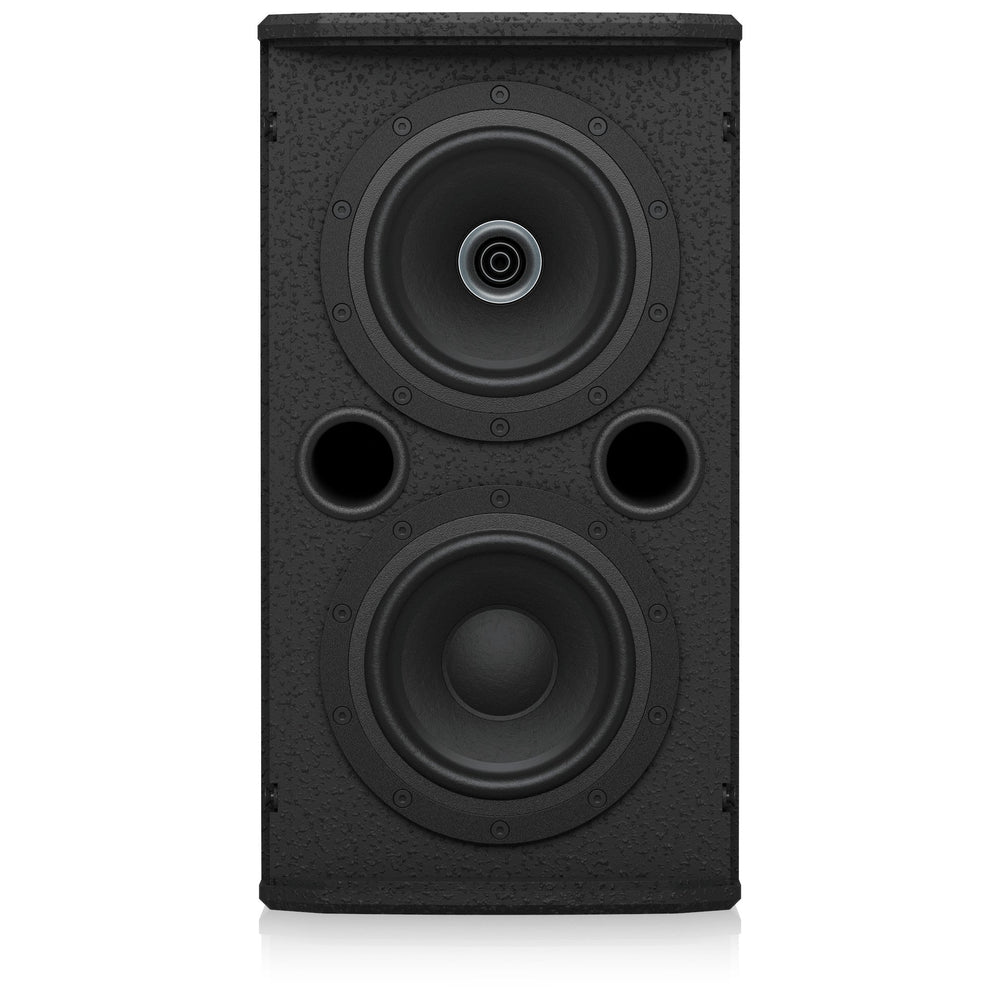

The 520-Watt 125 mm (5") Dual Concentric driver in the VX 5.2 uses TANNOY’s point source technology to ensure high power output with sensitivity and efficiency. It provides a well-defined 120° horizontal by 90° vertical dispersion for optimum coverage, exceptional forward gain, and improved low-mid extension. An additional 125 mm (5") low-frequency driver extends the bass response.
Performance Applications
The trapezoidal enclosure design allows versatile placement, including small-scale FOH, floor monitor, delay, and stage front fill deployment. M6 inserts accommodate an external pole mount socket for placement atop a subwoofer in portable PA setups. Optional VX 5.2 high-performance steel mounting hardware (sold separately) includes a horizontal yoke bracket and Omnimount spaced inserts for wall or ceiling installation. All hardware is tested and certified with a greater than 5:1 safety ratio for complete peace of mind.
Product Features
-
Full-range multi-purpose loudspeaker for portable and installation applications
-
130 Watts continuous, 520 Watts peak power
-
5" Dual Concentric full-range driver for point source phase coherence
-
5" low-frequency driver for extended bass response
-
Precise 120° H x 90° V dispersion for optimum coverage and forward projection
-
Ideal for FOH, floor monitor, delay, and stage front fill applications
-
Vented and internally braced plywood enclosure
-
Hard-wearing semi-matt black paint finish
-
Rugged powder-coated perforated steel mesh grille
-
M6 pole mount socket for small-scale portable PA
-
Optional horizontal mounting yoke (available separately)
-
Neutrik speakON* NL4 and barrier strip connectors for input and link output
-
10-Year Warranty Program*
-
Designed and engineered in the U.K.
-
Sold as a pair
