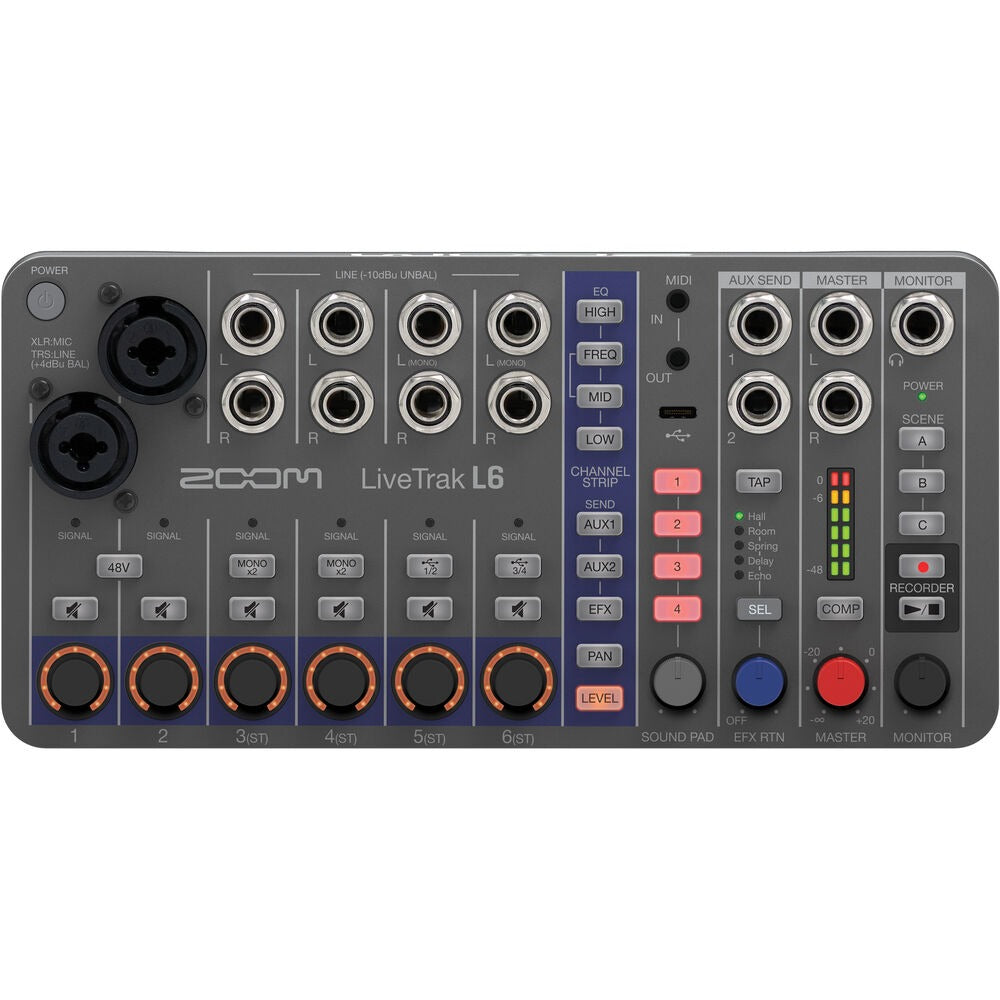

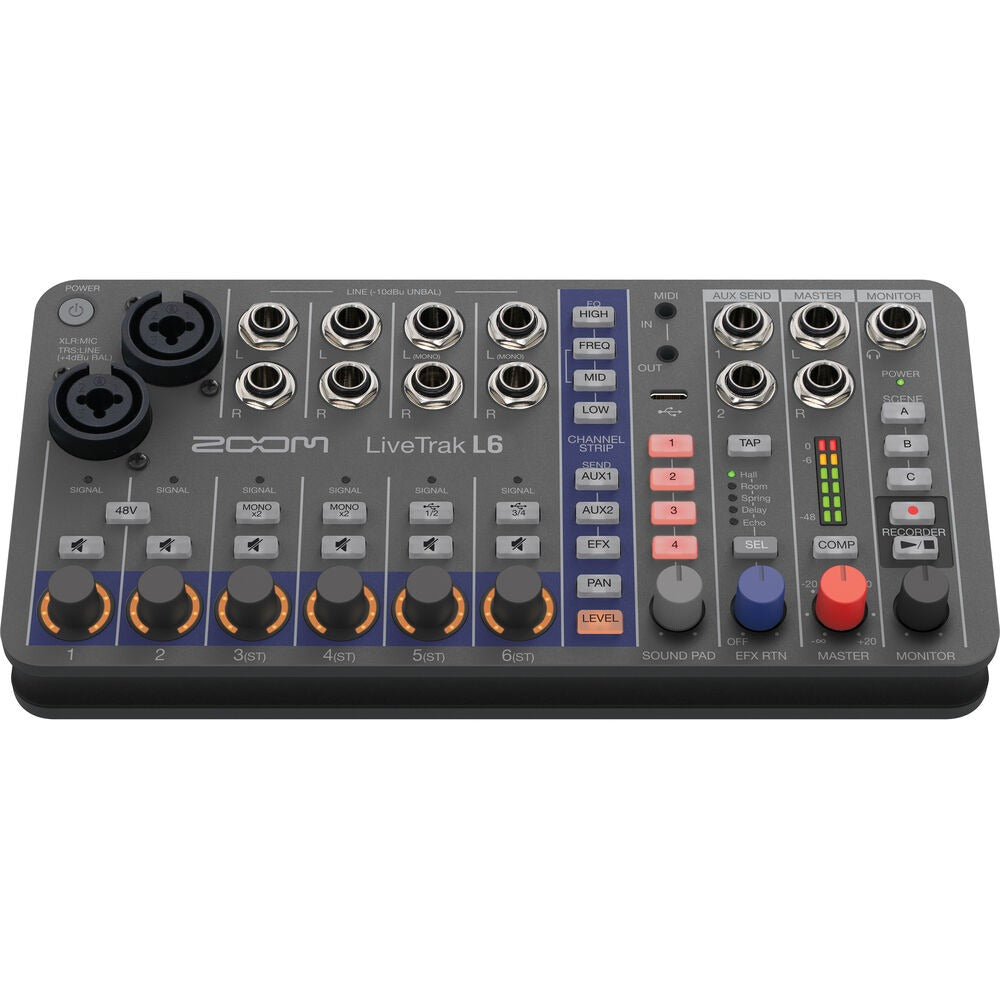

Zoom LiveTrak L-6 Portable 6-Channel Digital Mixer

Zoom LiveTrak L-6 Portable 6-Channel Digital Mixer

The LiveTrak L-6 combines a compact digital mixer, multitrack recorder, audio interface, and sample player in a portable format built for synthesizer setups, electronic music rigs, rehearsals, live performances, and mobile recording. Its hands-on control layout provides quick access to levels, panning, auxiliary sends, and EQ without relying on menus or an external computer.

Two XLR-1/4in combo inputs accommodate microphones, instruments, and line-level sources, with +48V phantom power available for compatible condenser microphones. Four stereo pairs of 1/4in line inputs provide eight additional connections for synthesizers, drum machines, samplers, and other stereo equipment.

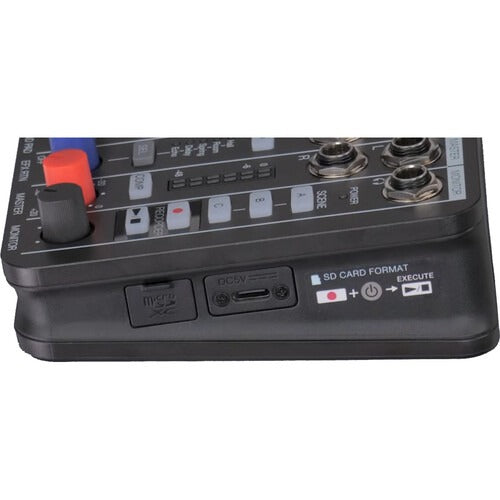

The integrated recorder captures up to 12 tracks simultaneously to a microSD card using 32-bit float technology, providing additional headroom and reducing the risk of unusable recordings caused by unexpected level changes. USB-C connectivity also allows the mixer to function as a 12-input, 4-output audio interface for recording, streaming, and computer-based production.

Each channel includes a 3-band EQ with adjustable midrange frequency, two auxiliary sends, pan control, and dedicated level adjustment. Five internal send effects add ambience and depth without external processors, while three scene memories store mixer and tempo settings for quick recall.

Four assignable sound pads can trigger samples during performances, broadcasts, or recording sessions. The mixer can operate from four AA batteries or USB power, making it practical for both permanent setups and portable sessions.

Key Features

• Portable digital mixer and multitrack recorder

• Two mono channels and four stereo channels

• Ten simultaneous analog inputs

• Two XLR-1/4in combo mic and line inputs

• Four stereo pairs of 1/4in line inputs

• +48V phantom power

• Records up to 12 tracks simultaneously

• 32-bit float recording to microSD card

• 48kHz sample rate

• 12-input, 4-output USB audio interface

• USB-C computer and mobile device connectivity

• 3-band EQ with adjustable midrange frequency on every channel

• Two independent auxiliary sends

• Five internal send effects

• Four assignable sound pads

• Three scene memories

• Stereo main outputs

• Dedicated headphone output

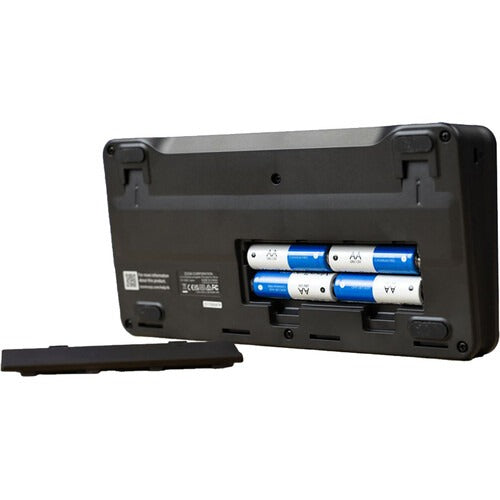

• Powered by four AA batteries or USB

• 8.8in X 4.5in X 1.8in dimensions

• 1.3lb weight

What’s Included

• LiveTrak L-6 digital mixer and recorder

• USB cable
