8-CHANNEL AUDIO & CV BREAKOUT BOX / USB HOST & DEVICE

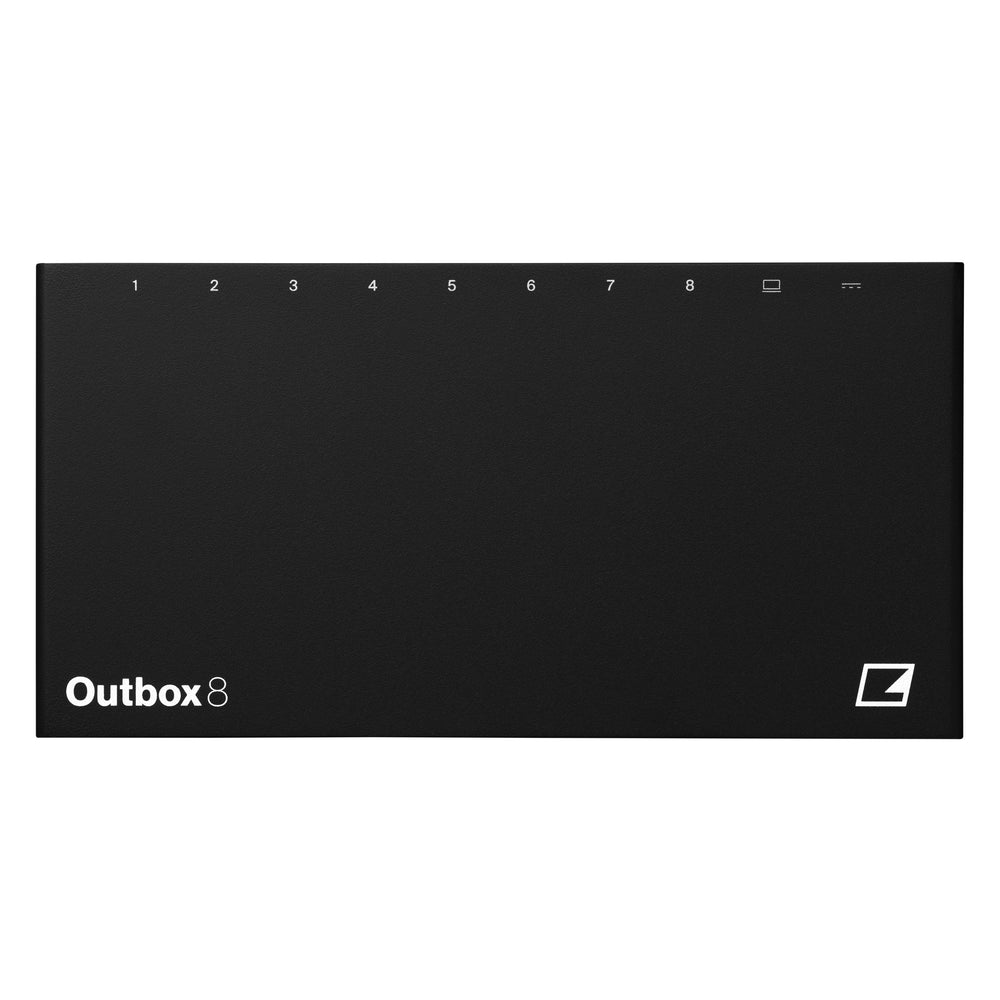

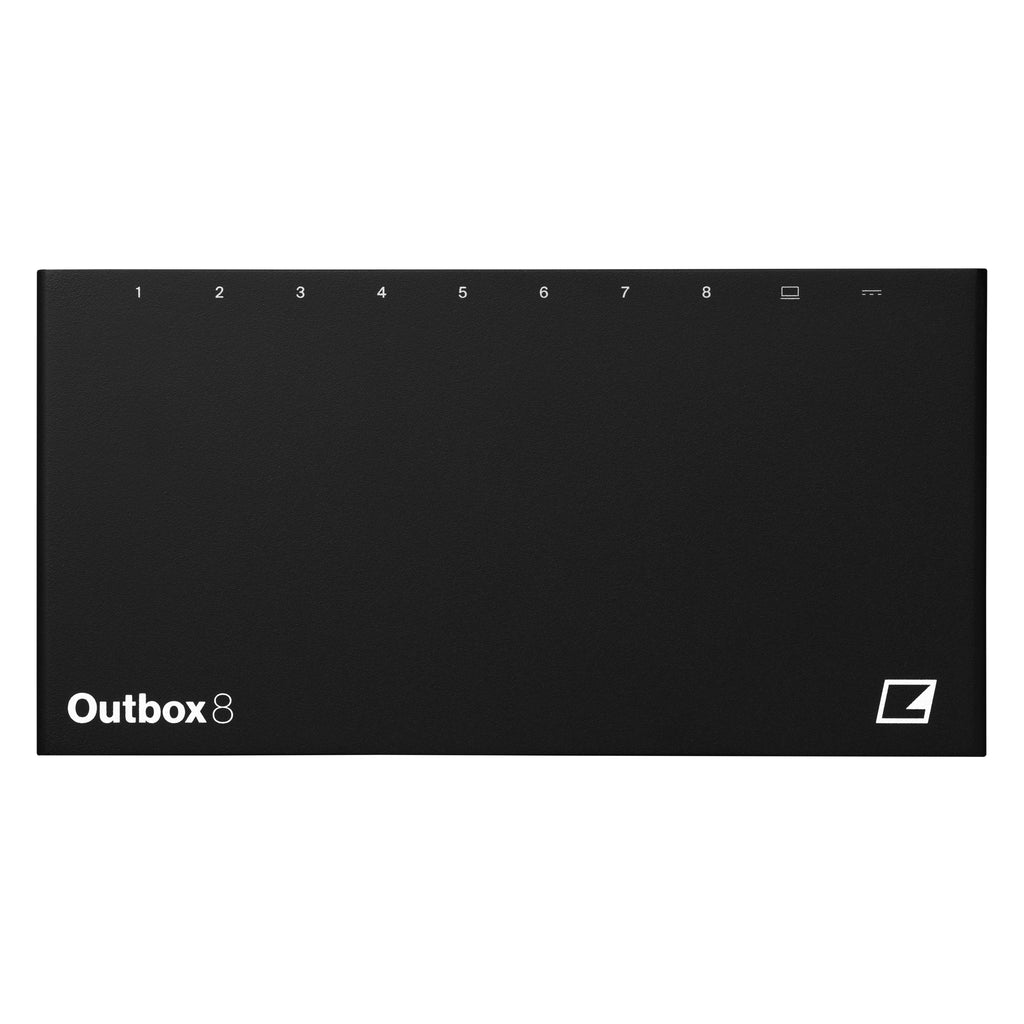

The Elektron OUTBOX 8 is a versatile eight-channel audio/CV breakout box and USB host/device designed to expand your setup with flexible connectivity and creative routing possibilities.
Add eight fully configurable physical outputs to a compatible device and route audio and CV in virtually any combination. Send individual tracks to mixers, effects, and external hardware, convert MIDI to CV for modular systems, or use OUTBOX 8 as an eight-output USB audio interface for your computer, tablet, or phone.
FEATURES
-
8 fully configurable outputs for audio and CV
-
Audio & CV routing in any combination supported by the connected device
-
USB host/device functionality for connecting compatible USB MIDI and audio devices
-
Elektron Overbridge compatibility for supported Elektron machines
-
MIDI-to-CV conversion for controlling modular and CV-compatible instruments
-
Eight-output USB audio interface for computer, tablet, or phone
-
Route individual tracks or submixes to mixers, effects, monitors, and external hardware
-
Assign outputs to pitch, gate, trig, value, or clock CV duties
-
Compatible with USB class-compliant MIDI devices
-
Supports many USB class-compliant audio devices
-
DC-coupled outputs for both audio and CV applications
-
48 kHz / 32-bit D/A converters
-
USB Power Delivery support
SEND AUDIO
Route individual tracks or submixes from a compatible Elektron machine to external processors, mixers, effects, or other studio hardware. OUTBOX 8 gives you direct physical access to multiple outputs for flexible mixing and performance setups.
SEND CV
Assign OUTBOX 8's outputs to different CV functions including pitch, gate, trig, value, and clock. Integrate modular synthesizers and other CV-controllable equipment directly into your Elektron setup.
MIDI TO CV
Use OUTBOX 8 as a dedicated USB MIDI-to-CV interface. Sequence, play, modulate, and synchronize modular systems and other CV-capable instruments from your Elektron device. You can also connect a compatible MIDI controller for direct control.
EIGHT-OUTPUT COMPUTER AUDIO
Connect OUTBOX 8 to your computer, tablet, or phone and use it as an eight-output USB audio interface. Route separate DAW channels to mixers, effects, monitors, or other external hardware while integrating MIDI-to-CV functionality into your setup.
KEY SPECIFICATIONS
-

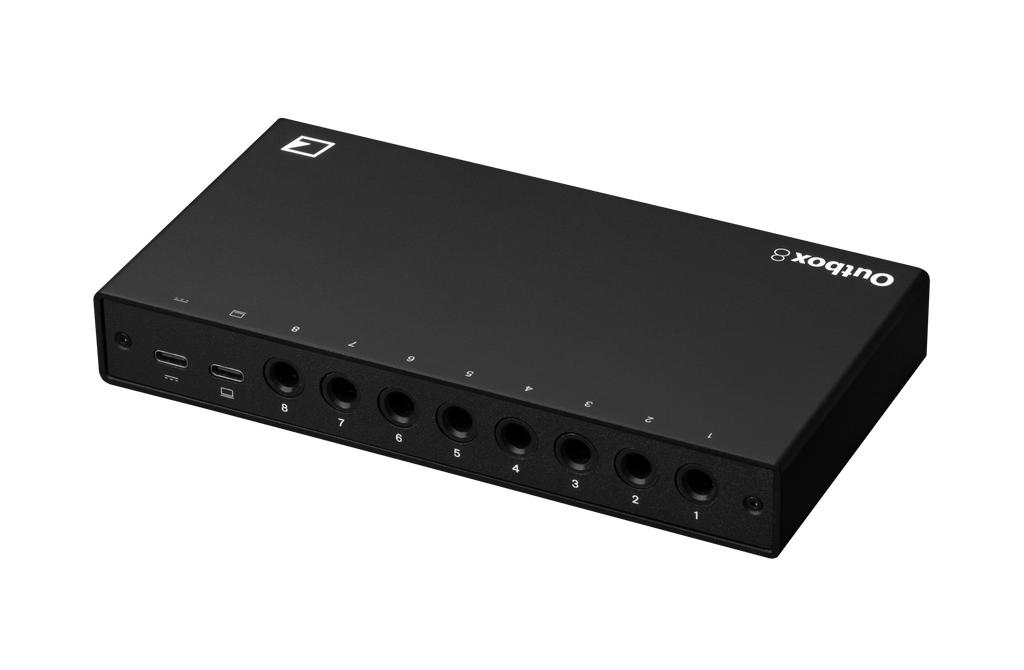

Outputs: 8 × 1/4" impedance-balanced, DC-coupled audio/CV
-
D/A Conversion: 48 kHz / 32-bit
-
CV Output Range: ±5 V
-
CV Signal Types: GROUNDED, PITCH V/OCT, PITCH HZ/V, VALUE LIN, TRIG, GATE, CLOCK
-
Power Input: 1 × USB Type-C, 5 V / 0.5 A / 2.5 W or higher
-
Data Port: 1 × USB 2.0 High-Speed Type-C
-
USB: Power Delivery, dual-role data, dual-role power
-
Status: 1 × status LED
-
Dimensions: 176 × 90 × 28 mm (W × D × H, including feet)
-
Weight: Approximately 0.35 kg
