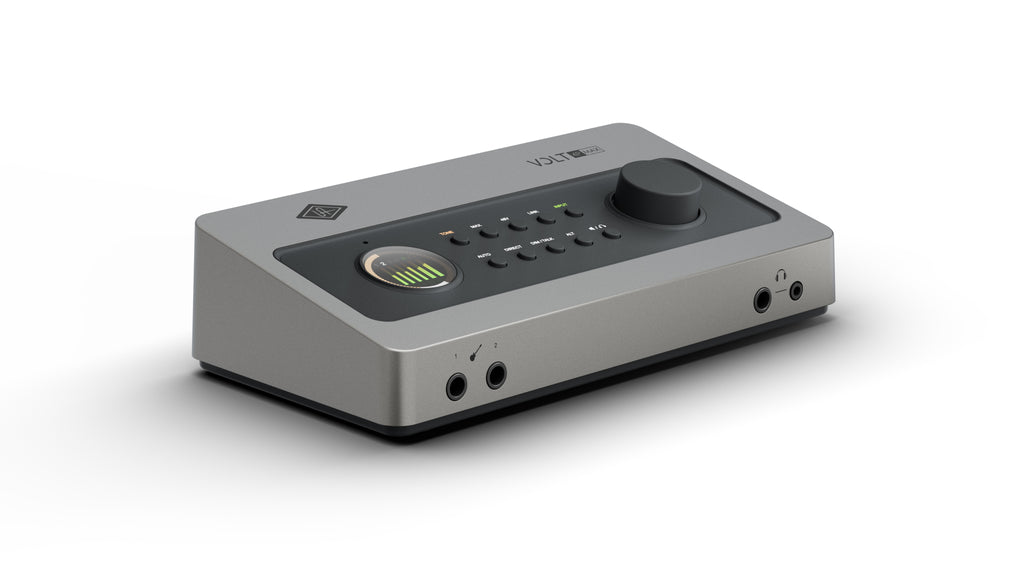

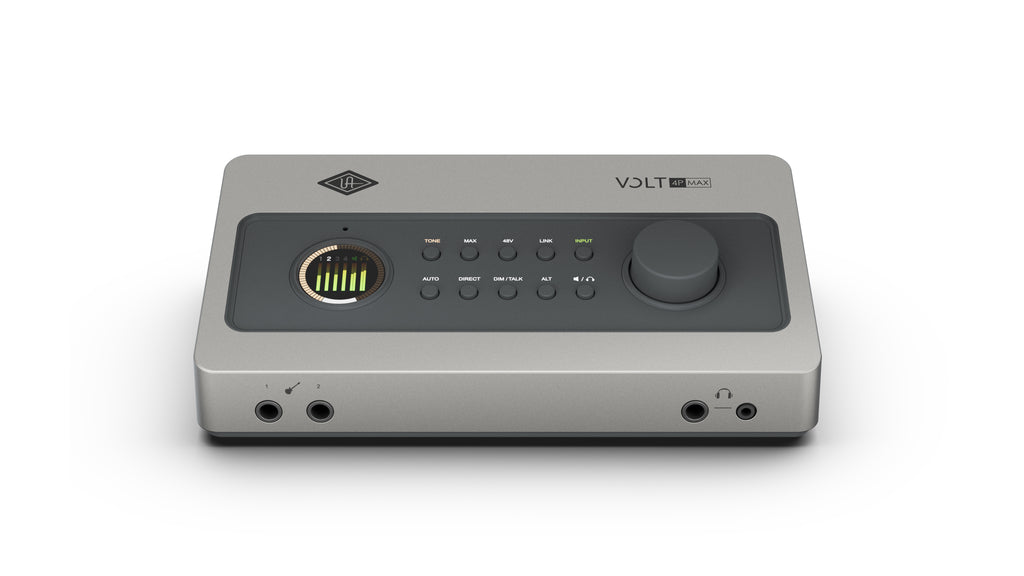

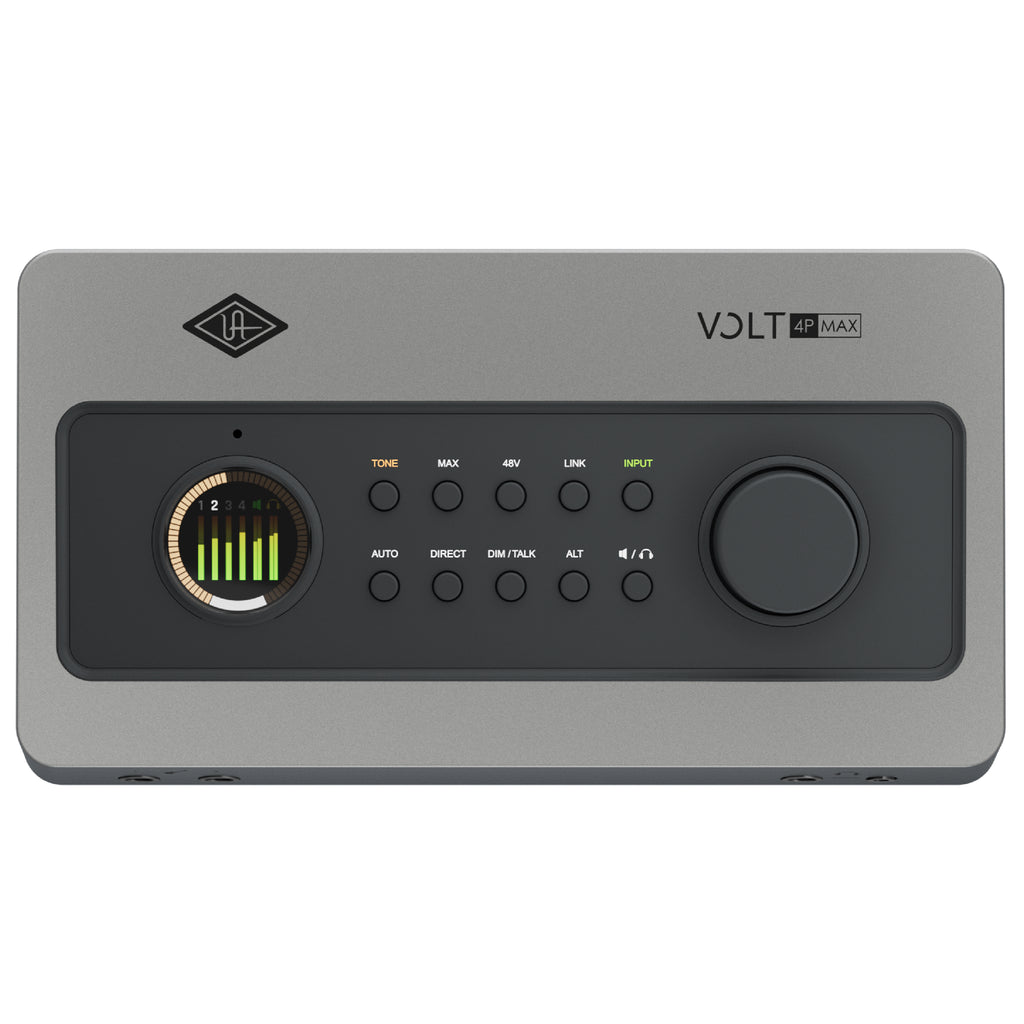

The Universal Audio Volt 4P Max is a 12-in / 6-out desktop USB audio interface built for full-band recording, larger sessions, and producers who need multiple microphone inputs in a compact setup. With four Tone Shaping Preamps, onboard Max compression, 32-bit / 192 kHz conversion, speaker switching, Auto-Gain, Clip Protection, and a full-color Smart Display, Volt 4P Max combines versatile I/O with streamlined recording controls.

Four microphone/line inputs provide up to 60 dB of digitally controlled gain, allowing you to track multiple performers or instruments simultaneously. Each preamp features three Tone Shaping modes—Warmth, Focus, and Shine—for adding different harmonic characters to your recordings. Max Processing provides six onboard compressor presets for sources including vocals, guitar, bass, and drums, with 18 possible Tone and Max combinations.

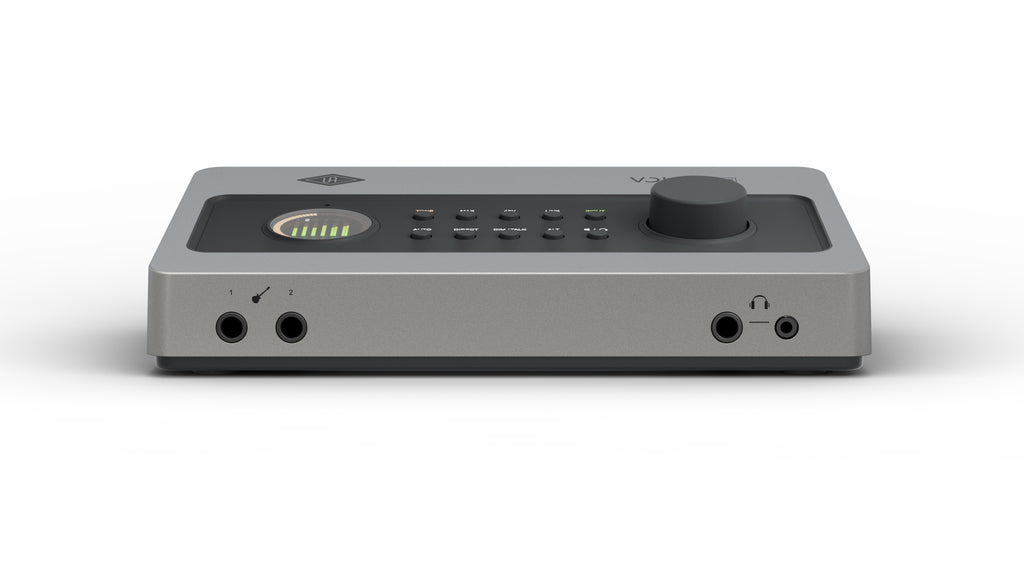

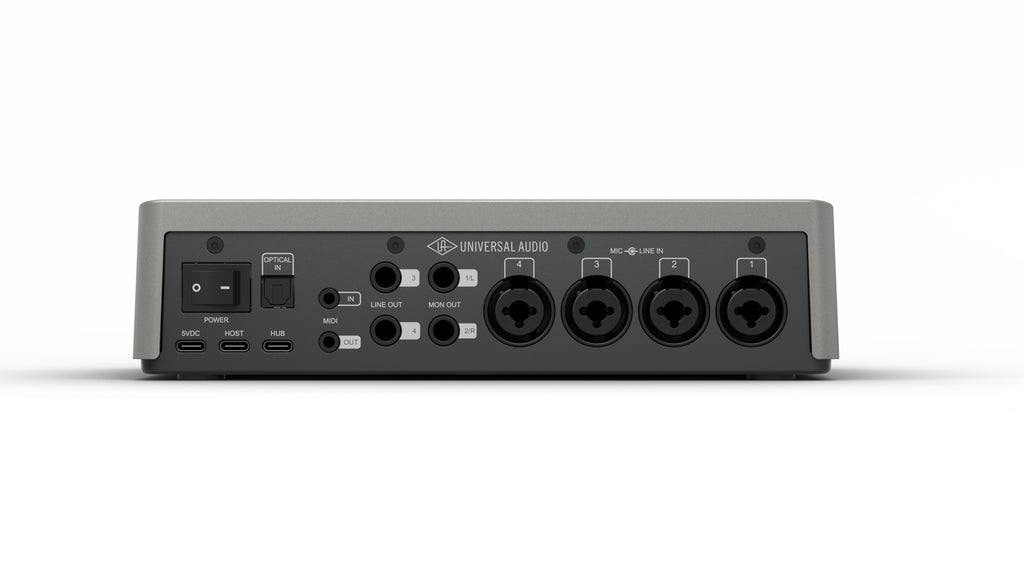

The interface provides two front-panel Hi-Z instrument inputs along with additional line I/O for connecting external equipment. ADAT or S/PDIF optical input allows for digital expansion, while MIDI In and Out provide connectivity for hardware instruments, synthesizers, and controllers. Two stereo monitor outputs with Main and Alt speaker switching make it easy to move between two monitoring systems.

A built-in talkback microphone and two headphone outputs with a shared cue mix support tracking and collaboration, while loopback functionality makes Volt 4P Max suitable for podcasts, livestreams, and content creation. The full-color Smart Display provides at-a-glance information for levels, settings, and gain reduction, while Auto-Gain and Clip Protection help prevent unwanted clipping during recording.

Volt 4P Max is USB bus-powered and class-compliant for use with Mac, Windows, iPad, and iPhone. It integrates with the UAD Console app and LUNA, and includes a collection of UAD plug-ins, instruments, and additional third-party software.

Key Features

• 12-in / 6-out desktop USB audio interface

• 32-bit / 192 kHz A/D and D/A conversion

• Four Tone Shaping microphone preamps with up to 60 dB of gain

• Three preamp character modes: Warmth, Focus, and Shine

• Four microphone/line inputs for recording up to four sources simultaneously

• Max Processing with six onboard compressor presets

• 18 Tone and Max processing combinations

• Two front-panel 1/4" Hi-Z instrument inputs

• Additional line I/O for external equipment

• Main and Alt speaker switching for two monitor systems

• Built-in talkback microphone

• Full-color Smart Display with level and gain-reduction metering

• Auto-Gain and Clip Protection

• ADAT or S/PDIF optical input for digital expansion

• Up to 8 channels of ADAT input at 44.1/48 kHz

• MIDI In and Out via 1/8" TRS mini-jacks

• Two headphone outputs with shared cue mix

• Built-in USB hub for peripherals and MIDI controllers

• Built-in loopback for podcasting, streaming, and content creation

• Independent 48V phantom power per microphone channel

• UAD Console and LUNA integration

• USB bus-powered and class-compliant

• Compatible with Mac, Windows, iPad, and iPhone

• Rugged desktop construction

Specifications

I/O

• Simultaneous I/O: 12-in / 6-out

• Microphone Preamps: 4, up to 60 dB gain

• Monitor Outputs: 2 stereo pairs with Main/Alt speaker switching

• Headphone Outputs: 2 stereo outputs with shared cue mix

• USB Host: USB 2.0 Type-C

• USB Hub: 5V DC, 0.5A maximum

• External Power Input: 5V DC, 2A minimum

• Digital Input: ADAT or S/PDIF optical

• MIDI: In/Out, 1/8" TRS mini-jack, MIDI Type A

• Talkback: Built-in microphone

Digital Audio

• Sample Rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz

• Bit Depth: 32-bit

• ADAT: 8 channels at 44.1/48 kHz

• ADAT S/MUX: 4 channels at 96 kHz or 2 channels at 192 kHz

• S/PDIF: 2 channels at supported sample rates

Microphone Inputs 1–4

• Frequency Response: 20 Hz–20 kHz, ±0.08 dB

• Dynamic Range: 119 dB A-weighted

• THD + Noise: -108 dB (0.0004%)

• Maximum Input Level: +14 dBu

• Input Impedance: 2 kΩ

• Available Gain: 60 dB

• Phantom Power: +48V, switchable per channel

• Connector: XLR/TRS combo

Instrument Inputs 1–2

• Frequency Response: 20 Hz–20 kHz, ±0.02 dB

• Dynamic Range: 116 dB A-weighted

• THD + Noise: -108 dB (0.0004%)

• Maximum Input Level: +13 dBu

• Input Impedance: 1 MΩ

• Available Gain: 60 dB

• Connector: 1/4" TS unbalanced

Line Inputs 1–4

• Frequency Response: 20 Hz–20 kHz, ±0.05 dB

• Dynamic Range: 119 dB A-weighted

• THD + Noise: -108 dB (0.0004%)

• Maximum Input Level: +22 dBu

• Input Impedance: 10 kΩ

• Available Gain: 60 dB

• Connector: 1/4" TRS balanced / TS unbalanced

Monitor & Line 3–4 Outputs

• Frequency Response: 20 Hz–20 kHz, ±0.05 dB

• Dynamic Range: 126 dB A-weighted

• THD + Noise: -112 dB (0.0003%)

• Maximum Output Level: +20.2 dBu

• Output Impedance: 200 Ω

• Connector: 1/4" TRS balanced / TS unbalanced

• DC coupled

Headphone Outputs

• Frequency Response: 20 Hz–20 kHz, ±0.08 dB

• Dynamic Range: 116 dB A-weighted

• THD + Noise: -103 dB (0.0007%, 300 Ω)

• Maximum Output Power: 45 mW into 32 Ω

• Maximum Output Power: 24 mW into 300 Ω

• Connectors: 1/4" and 1/8" TRS stereo

• DC coupled

Power

• USB Bus-Powered: Yes

• Typical Power Consumption: 6.0 W

• Maximum Power Consumption: 9.1 W

• Power Switch: Rear panel

• USB-C connectivity

• External power supply included

System Requirements

• macOS 12 Monterey or newer

• Windows 10 64-bit or newer

• iPadOS / iOS 16 or newer

• Available USB 2.0 or higher port

• Intel, AMD, or Apple silicon processor

• Internet connection required for software downloads

• USB cable included

DAW Compatibility
Compatible with major DAWs including Ableton Live, FL Studio, GarageBand, Logic Pro, Pro Tools, and more.

Included Software

UAD Volt Studio Bundle

• LUNA Digital Audio Workstation

• Topline Vocal Tune

• UA 610 Tube Preamp & EQ Collection

• Century Tube Channel Strip

• Teletronix LA-2A Tube Compressor

• UA 1176 Classic FET Compressor

• Pure Plate Reverb

• Galaxy Tape Echo

• Oxide Tape Recorder

• Vibe Analog Machines

• PolyMAX Synth

• Anthem Analog Synth

• UAD Lion '68 Super Lead Amp

• UAD Showtime '64 Tube Amp

Additional Software

• Melodyne Essential by Celemony

• Ampeg SVT-VR Classic Bass Bundle by Plugin Alliance

• bx_Tuner

• bx_Masterdesk Classic

• Virtual Drummer DEEP by UJAM

• Virtual Bassist DANDY by UJAM

• Splice INSTRUMENT

• Prisma – Producer Lab by UVI

• FL Studio Producer Edition, 3 months

• Access to exclusive Puremix audio education content

Included UAD Volt Studio and third-party software bundles are subject to change without notice.
